Switch, Brake Fluid Level: Installation

NOTE:

All views are typical.

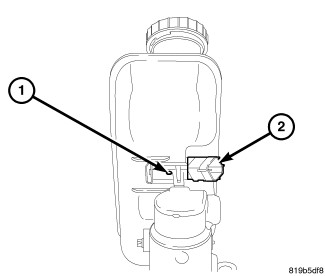

GC0124439Courtesy of CHRYSLER GROUP, LLC
  1. Insert brake fluid level switch (2) into left side of reservoir. Push switch in until retaining tab (1) locks into place in reservoir.
    GC0160586Courtesy of CHRYSLER GROUP, LLC
  2. Connect wiring harness connector (4) to brake fluid level switch mounted in brake fluid reservoir.
