Sensor, Vacuum Pressure: Installation

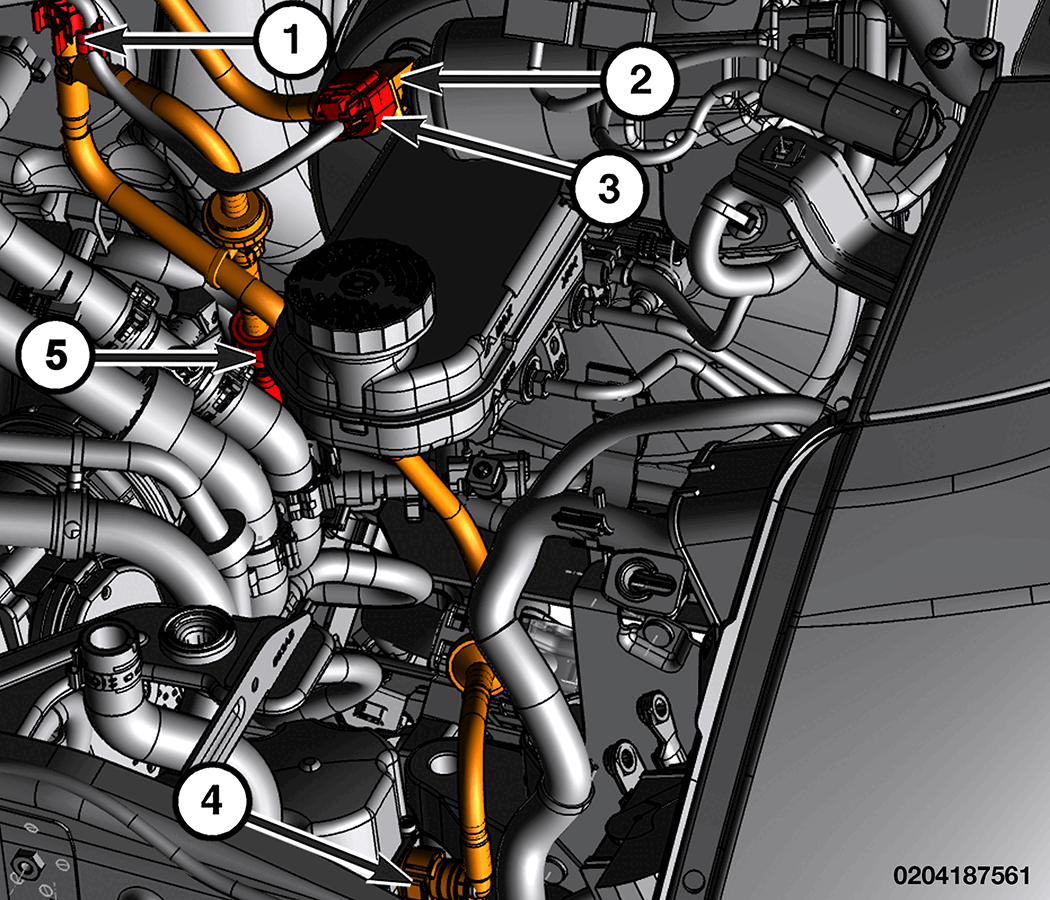

GC0204093Courtesy of CHRYSLER GROUP, LLC
  1. Position the vacuum pressure sensor and vacuum line assembly to the vehicle.
  2. Connect the vacuum line (5).
  3. Connect the vacuum line (4) to the electric vacuum pump.
  4. Install the vacuum pressure sensor (2) to the brake booster and connect the vacuum pressure sensor wire harness connector (3).
  5. Secure the vacuum line in the routing clip (1).
