Pump, Electric Vacuum: Installation

Courtesy of CHRYSLER GROUP, LLC

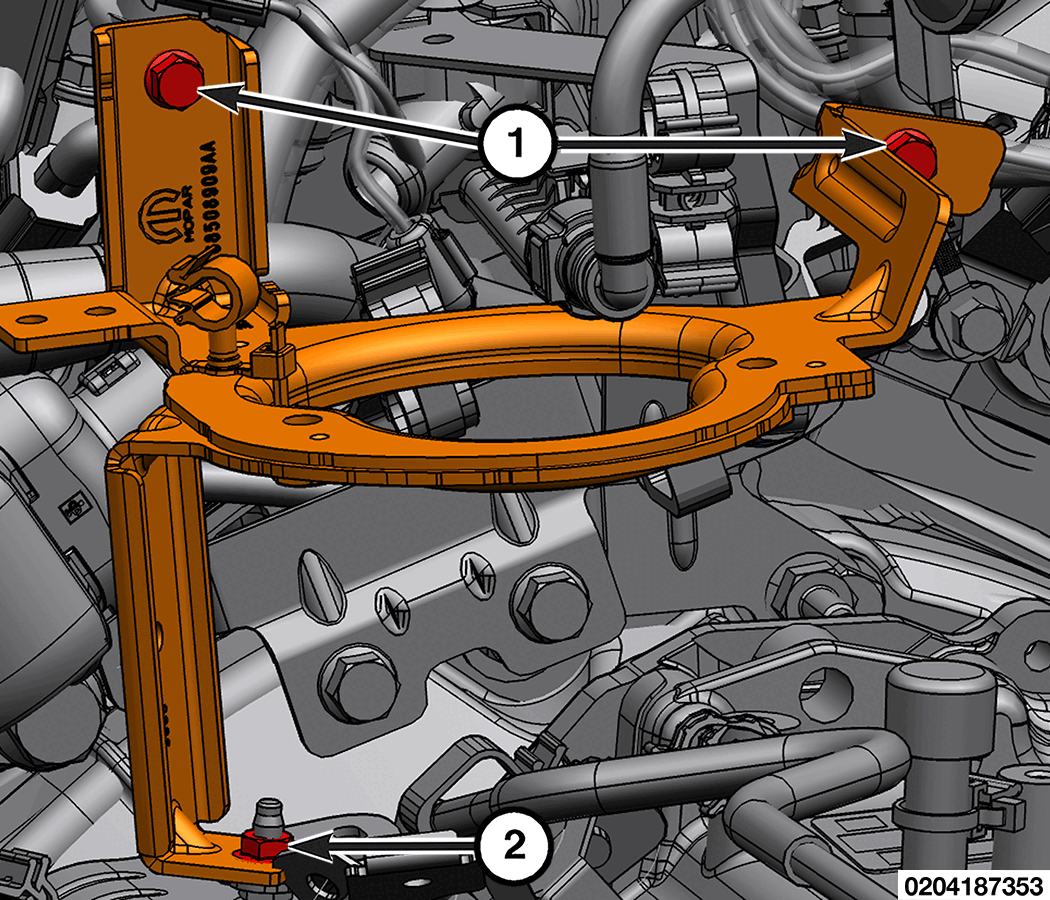

If necessary position the vacuum pump bracket over the vacuum pump bracket stud.
If necessary install the vacuum pump bracket bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
If necessary install the vacuum pump bracket nut (2) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
If necessary secure the routing clips.

Courtesy of CHRYSLER GROUP, LLC

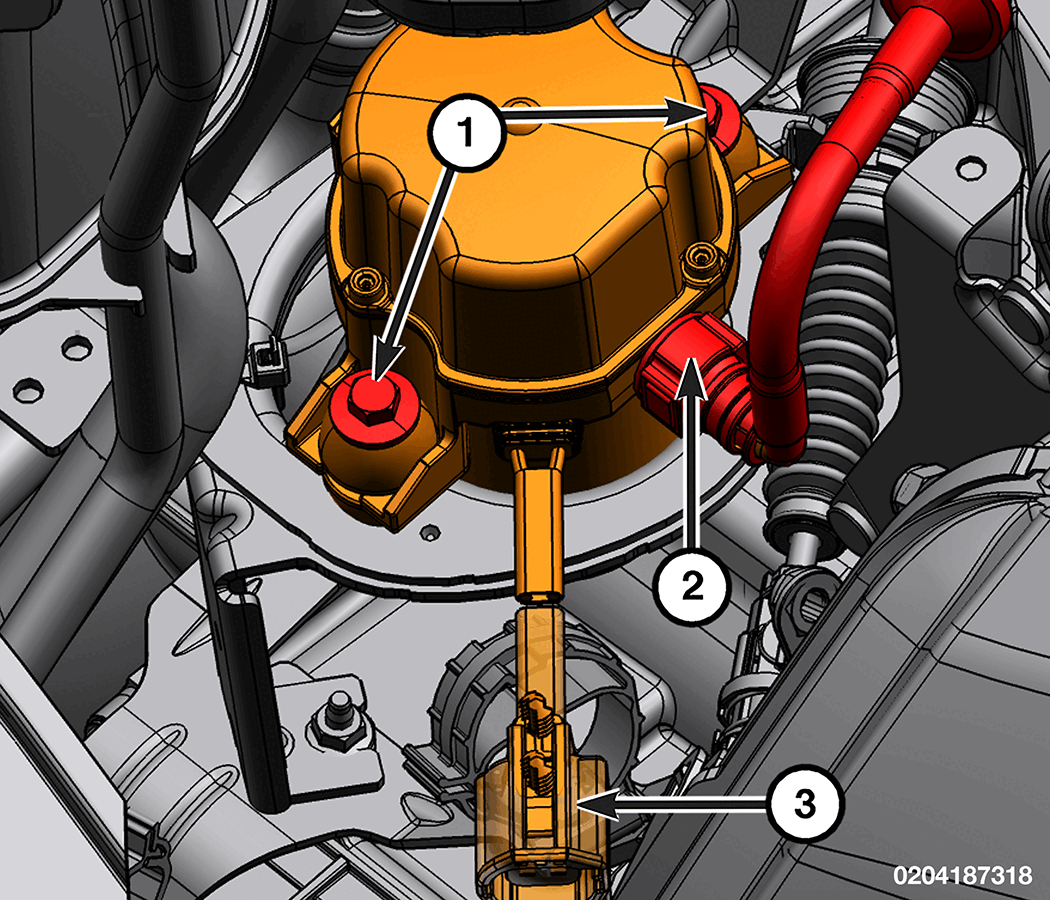

Position the vacuum pump to the vacuum pump bracket, then install the vacuum pump bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Connect the vacuum pump wire harness connector (3) and secure the wire harness connector routing clip.
Connect the vacuum line (2) to the vacuum pump.
