Hitch, Trailer: Removal

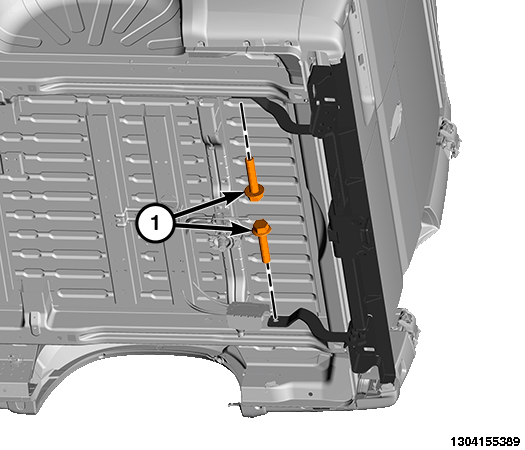

GC0190563Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear bumper reinforcement. Refer to REINFORCEMENT, BUMPER, REAR, REMOVAL .
  2. Remove the front bolts (1).

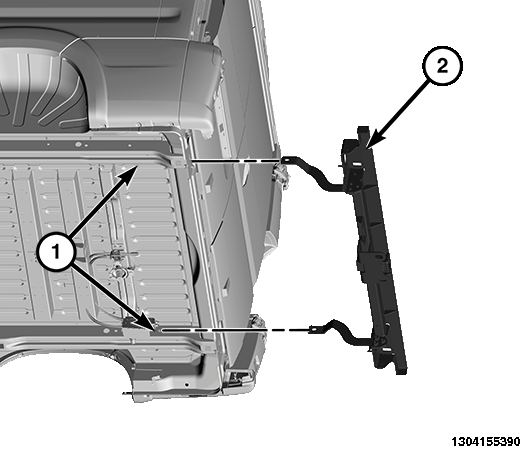

    GC0190569Courtesy of CHRYSLER GROUP, LLC
  3. Remove the trailer hitch (2).
