Side Fascia

Courtesy of CHRYSLER GROUP, LLC

NOTE:

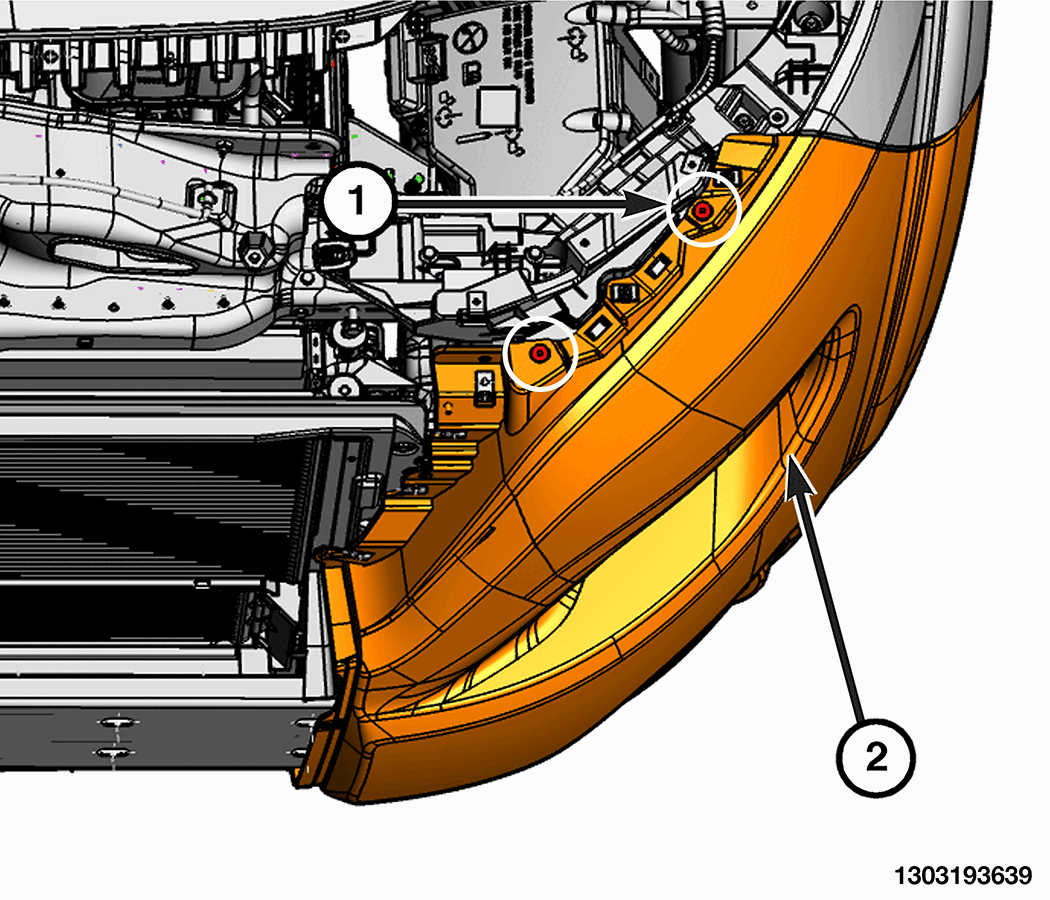

Left side shown in illustration, right side fascia similar.

Pull the center fascia slightly forward and position the side fascia (2) onto the vehicle.
Install the fasteners (1) into the top of side fascia and tighten securely.

Courtesy of CHRYSLER GROUP, LLC
Install the fasteners (1) into the center fascia (2) and tighten securely.

Courtesy of CHRYSLER GROUP, LLC
Install the fasteners (2) securing the side fascia (1) to the vehicle and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
If equipped, connect the fog light wiring connectors.
Install the front splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
Install the grille. Refer to GRILLE, INSTALLATION .
