Front Fascia Assembly

  1. Position the front fascia assembly (1) onto the vehicle.
    GC0206978Courtesy of CHRYSLER GROUP, LLC

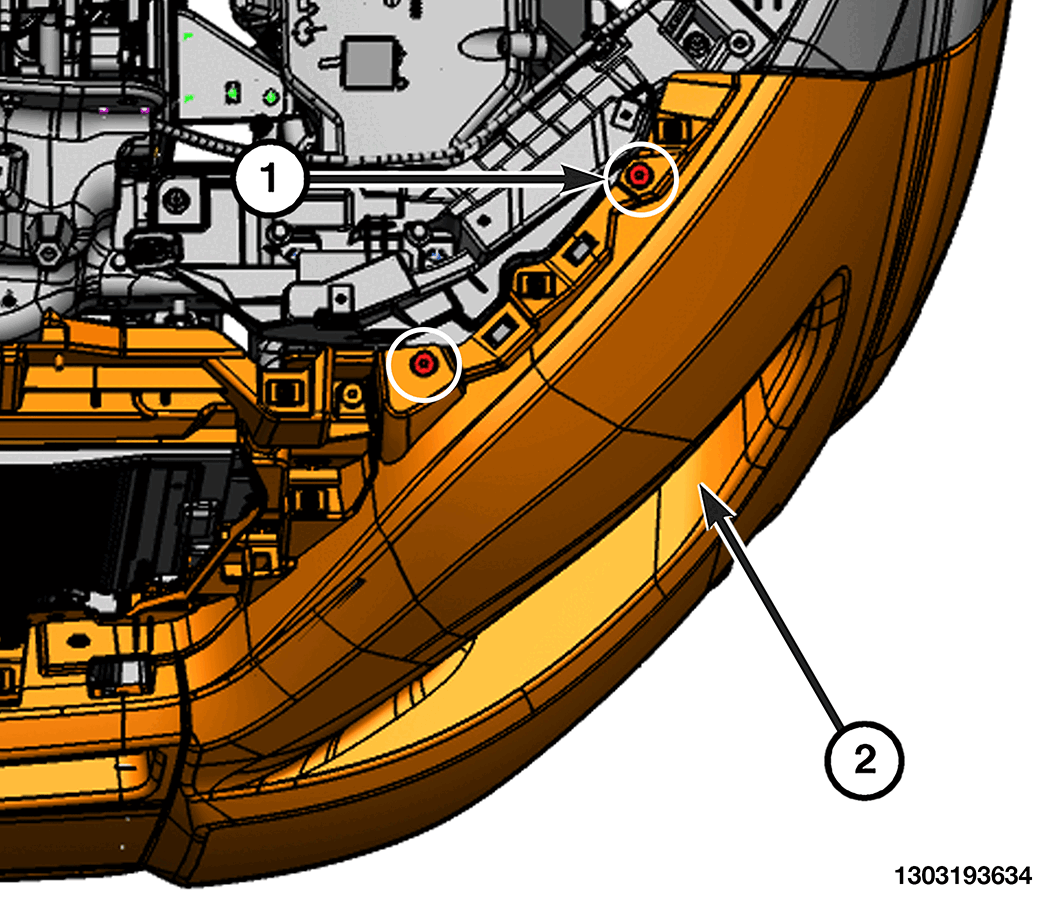

  2. Install the fasteners (1) into the side of the fascia (2) and tighten securely. Repeat on the opposite side.
    GC0206976Courtesy of CHRYSLER GROUP, LLC

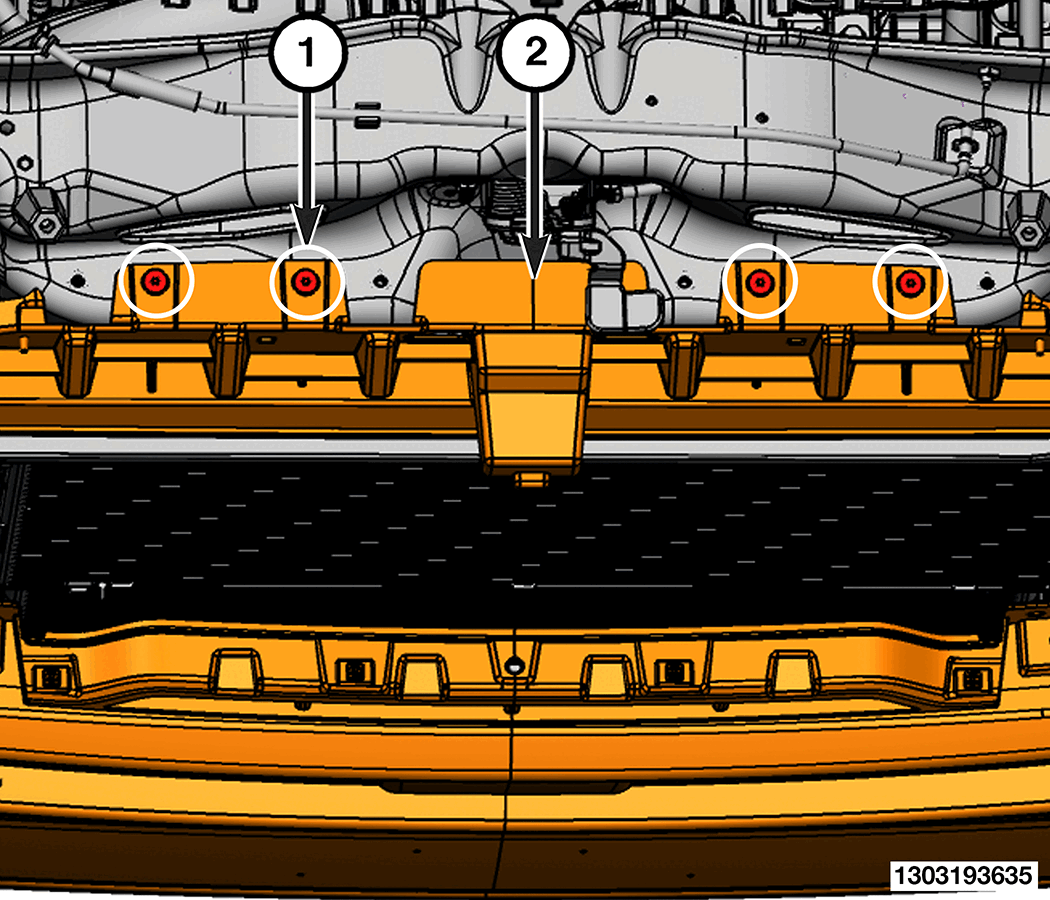

  3. Install the fasteners (1) into the center of the fascia (2) and tighten securely.
    GC0206957Courtesy of CHRYSLER GROUP, LLC

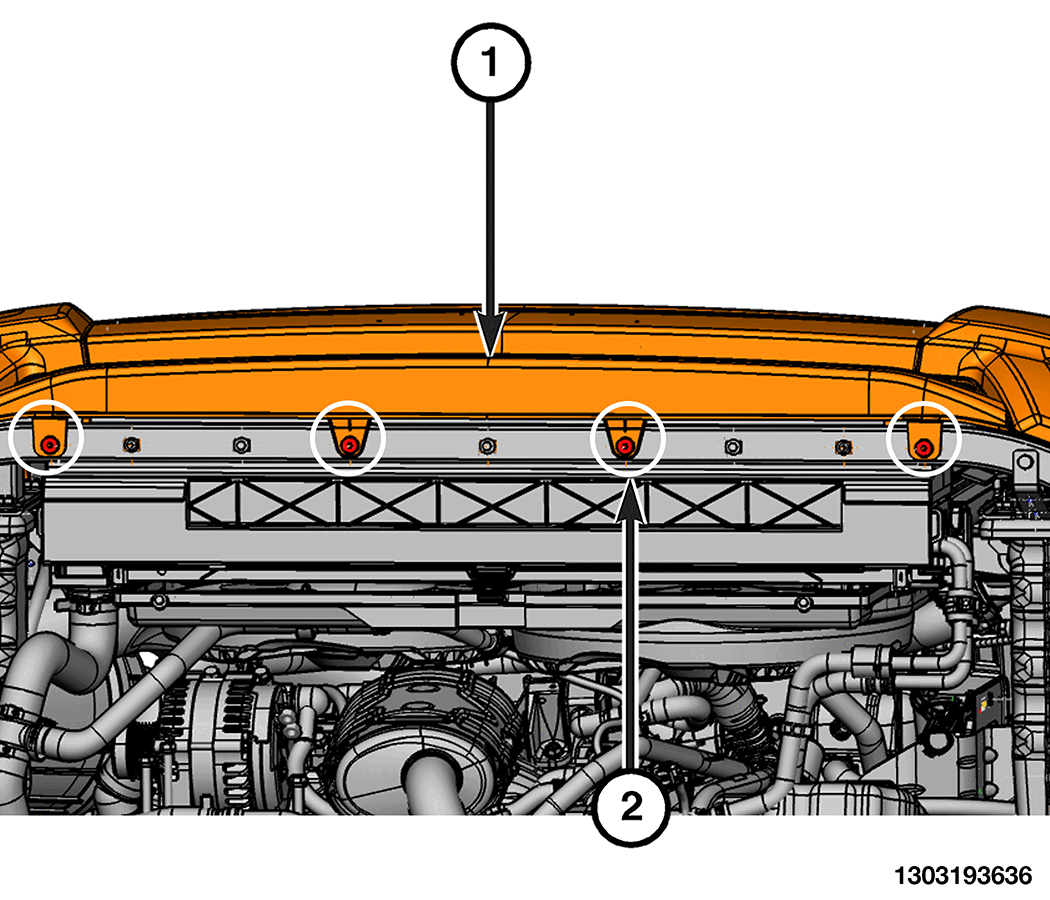

  4. Install the fasteners (2) into the bottom of the front fascia (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0206971Courtesy of CHRYSLER GROUP, LLC

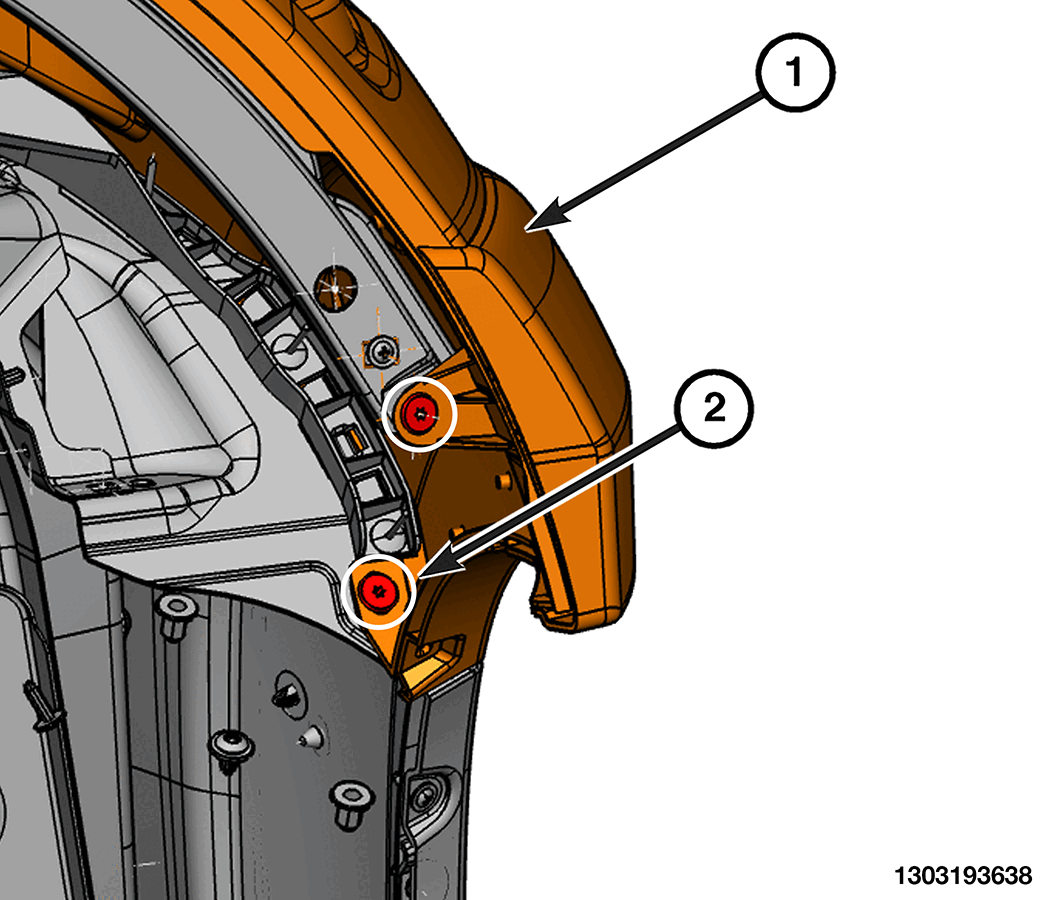

  5. Install the fasteners (2) securing the front fascia (1) to the vehicle and tighten to the proper torqe specification, then repeat on the opposite side. Refer to TORQUE SPECIFICATIONS  .
  6. If equipped, connect the fog light wiring connectors.
  7. If equipped, connect any additional electrical connectors and install the wire harness retaining clips to the fascia.
  8. Install the right underbody shield. Refer to SHIELD, UNDERBODY, INSTALLATION .
  9. Install the front splash shields. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
  10. Install the grille. Refer to GRILLE, INSTALLATION .
