Center Fascia

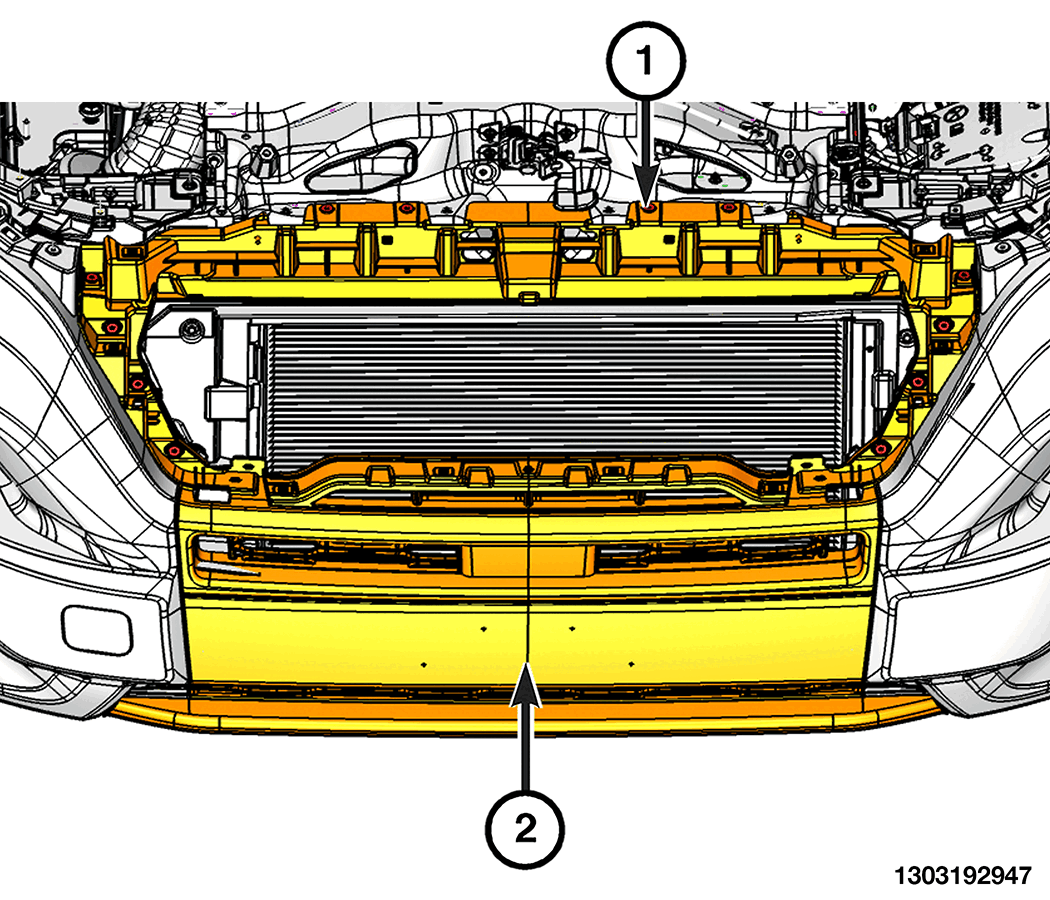

GC0206963Courtesy of CHRYSLER GROUP, LLC
  1. Position the center fascia (2) onto the vehicle.
  2. Install the fasteners (1) into the front center fascia and tighten securely.

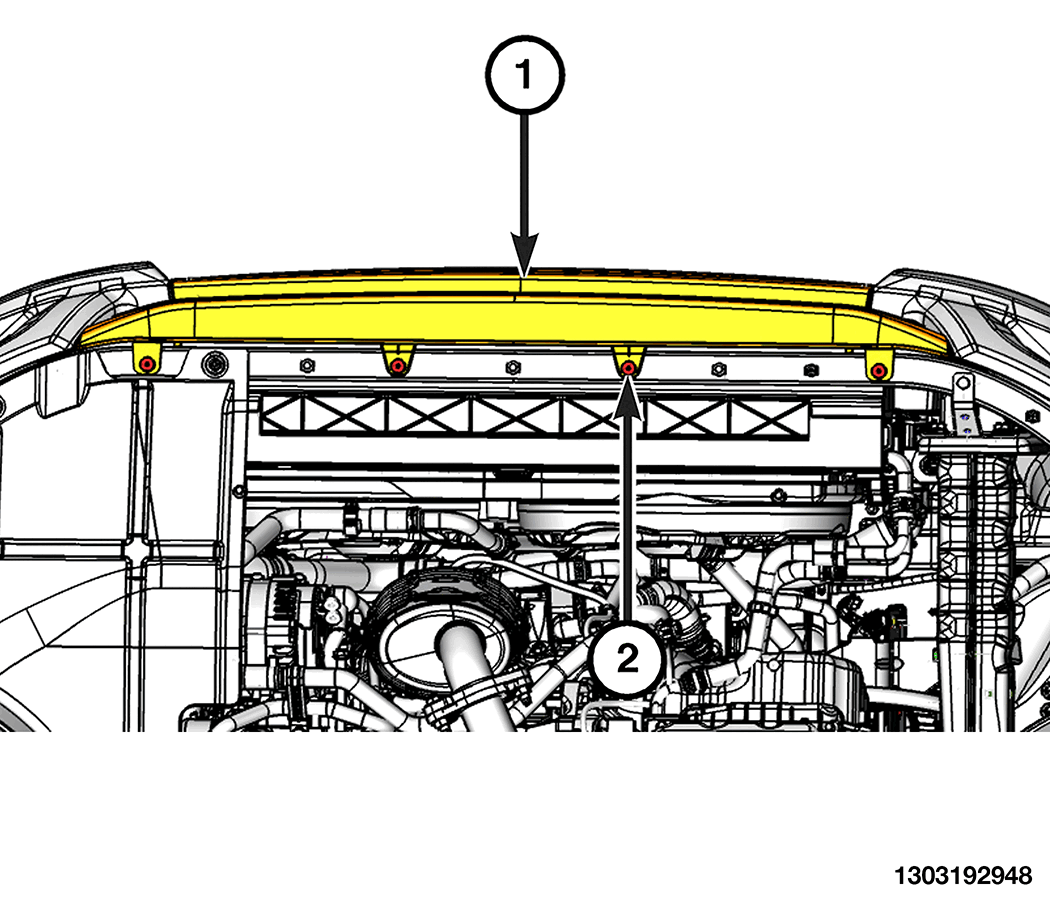

    GC0206959Courtesy of CHRYSLER GROUP, LLC
  3. Install the fasteners (2) into the bottom of the front center fascia (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  4. Install the grille. Refer to GRILLE, INSTALLATION .
