Antenna, Passive Entry: Installation: Roof

Courtesy of CHRYSLER GROUP, LLC

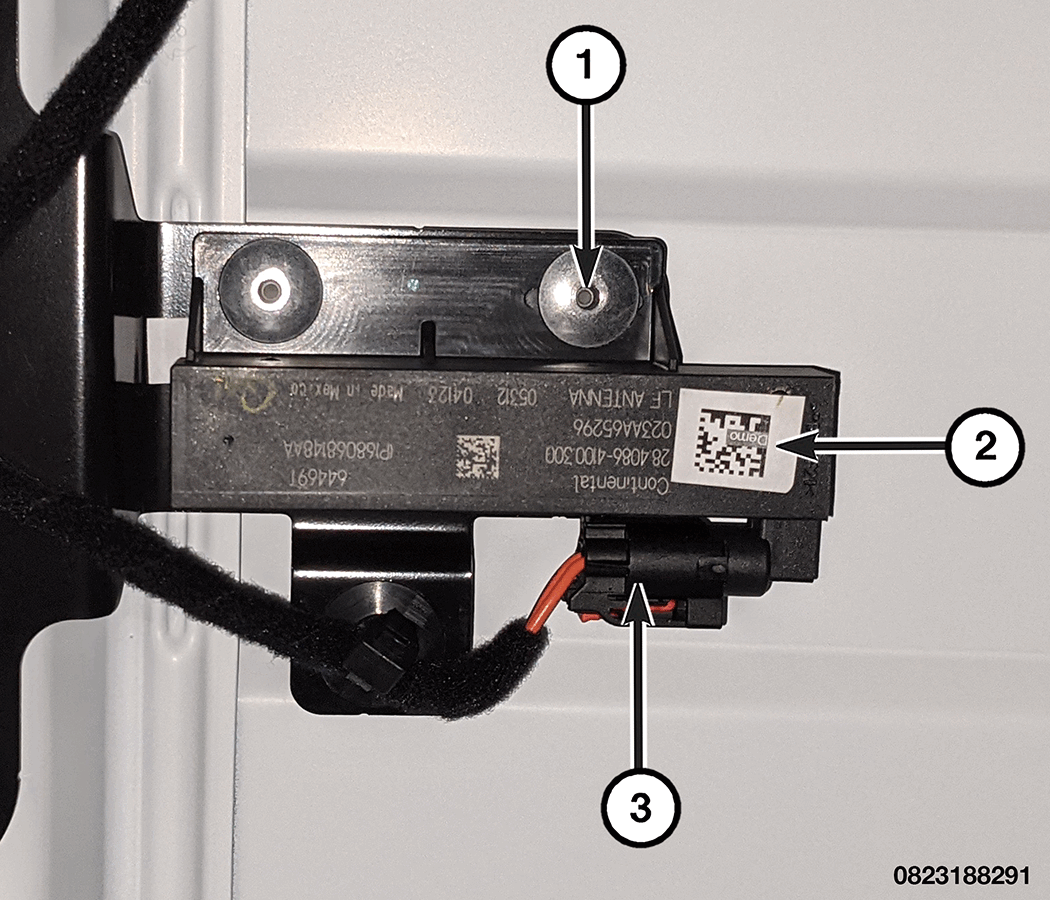

1. Position the Low Frequency (LF) antenna (2) to the roof.
2. Install the rivets (1) that secure the LF antenna.
3. Connect the wire harness connector (3) to the LF antenna.
4. Connect the battery negative cable.
