Instrument Panel

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

Courtesy of CHRYSLER GROUP, LLC

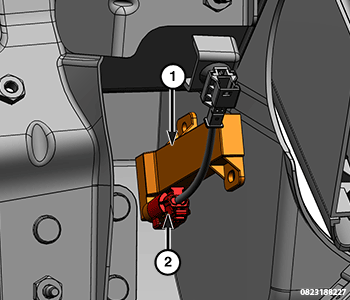

Position the Low Frequency (LF) antenna (1) to the instrument pane.
Connect the wire harness connector (2) to the LF antenna.

Courtesy of CHRYSLER GROUP, LLC

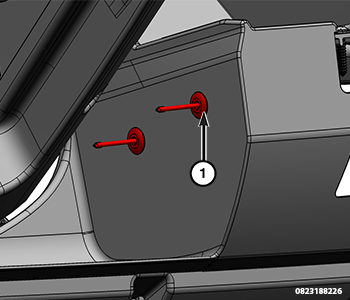

Install the rivets (1) that secure the LF antenna to the instrument panel.
Install the lower steering column shroud. Refer to SHROUD, STEERING COLUMN, UPPER, INSTALLATION .
Connect the battery negative cable.
