Reservoir, Windshield Washer: Removal: Reservoir

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Remove the right front lamp unit from the vehicle. Refer to UNIT, FRONT LAMP, REMOVAL .
3. Remove the washer pump/motor unit from the washer reservoir. Refer to PUMP, WINDSHIELD WASHER, REMOVAL .
4. Remove the filler neck from the washer reservoir. Refer to RESERVOIR, WINDSHIELD WASHER, REMOVAL .

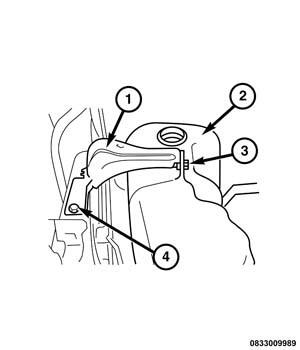

5. Remove the screw (4) that secures the washer reservoir mounting bracket (1) to the right front body structure.
6. Remove the screw (3) that secures the mounting bracket to the mounting tab of the washer reservoir (2).
7. Lift the reservoir upward far enough to disengage the locating pins on the bottom of the reservoir from the bushings in the top of the right front wheel house panel.
8. Remove the reservoir from the vehicle.
