Filler Neck Bracket
- Locate the filler neck (2) of the washer reservoir in the right rear corner of the engine compartment.
- Compress the latch feature (1) of the filler neck mounting bracket far enough to disengage the locking wedge on the filler neck.
- While holding the latch feature compressed, slide the filler neck upward far enough to disengage the locking wedge from the mounting bracket.

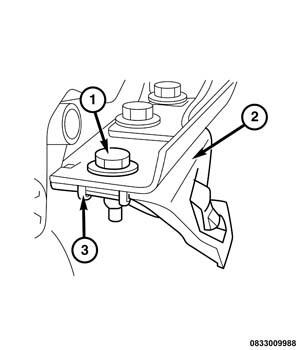

- Remove the screw (1) that secures the U-nut (3) of the filler neck mounting bracket (2) to the underside of the right hood hinge bracket support.
- Remove the filler neck mounting bracket from below the right hood hinge bracket support.
