Nozzle, Washer: Removal

Courtesy of CHRYSLER GROUP, LLC

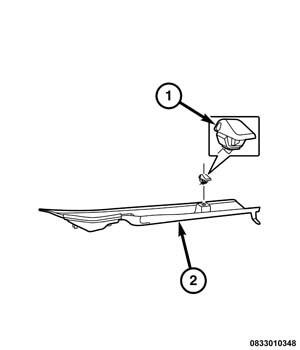

Remove the appropriate right or left cowl plenum cover/grille panel (2) from the vehicle. Refer to COVER, COWL PANEL, REMOVAL .
From the underside of the cowl plenum cover/grille panel, disconnect the hose connection from the barbed nipple of the washer nozzle (1).
From the underside of the cowl plenum cover/grille panel, release the integral latch features of the washer nozzle and push the nozzle out through the mounting hole toward the top side of the panel.
Remove the washer nozzle from the top of the cowl plenum cover/grille panel.
