Nozzle, Washer: Description

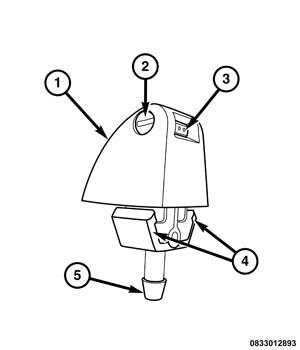

The washer nozzles (1) are constructed of molded plastic. Each nozzle has two integral latches (4) that secure them in dedicated rectangular mounting holes in the right or left cowl plenum cover/grille panel located near the base of the windshield. The domed upper surface of the washer nozzle is visible on the top of the plenum cover/grille panel, and the three orifices (3) of each nozzle are oriented towards the windshield glass. The washer plumbing fittings (5) for the washer nozzles extend below the cowl plenum cover/grille panel. The cowl plenum cover/grille panels must be removed from the vehicle to access the nozzles for service.
The washer nozzles also have an adjustment screw (2) located on the left side of each nozzle that allow the streams emitted by the nozzle to be aimed into the wipe pattern on the windshield. The washer nozzles cannot be repaired. If ineffective or damaged, they must be replaced.
