Check Valve, Washer: Removal

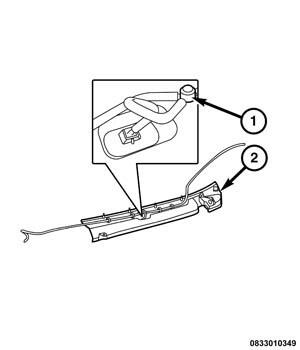

GC0160478Courtesy of CHRYSLER GROUP, LLC
  1. Remove the right cowl plenum cover/grille panel (2) from over the cowl plenum. Refer to COVER, COWL PANEL, REMOVAL .
  2. From the underside of the right cowl plenum cover/grille panel, disconnect the supply hose and the two washer nozzle hoses from the three barbed nipples of the washer system check valve (1).
  3. Remove the check valve from the underside of the right cowl plenum cover/grille panel.
