Front Outboard

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative cable from the battery.
Remove the appropriate front wheelhouse splash shield from the vehicle. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

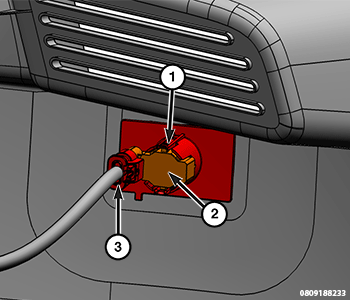

From the back of the fascia, disconnect the wire harness connector (3) from the park assist sensor (2).
Carefully pry the sensor bracket latch features (1) away from the latch tabs of the sensor far enough to disengage the sensor from the bracket.
Disengage the resilient O-ring spacer from around the circumference of the sensor membrane protrusion.
