Camera, Surround View: Removal: Rear

  1. Disconnect and isolate the negative battery cable.
  2. Remove the Center High Mount Stop Lamp (CHMSL) housing. Refer to LAMP, CLEARANCE, REMOVAL .

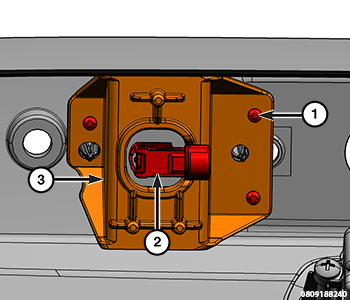

    GC0203968Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (2).
  4. Remove the camera bracket (3) fasteners (1) and remove the camera and bracket from the center clearance lamp housing.

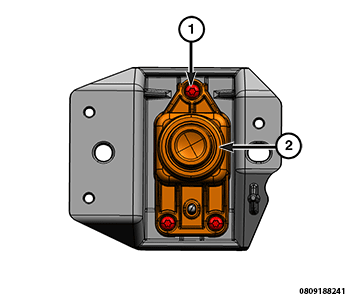

    GC0203917Courtesy of CHRYSLER GROUP, LLC
  5. Remove the fasteners (1) securing the camera (2) to the bracket.
