Camera, Surround View: Installation: Side

Courtesy of CHRYSLER GROUP, LLC

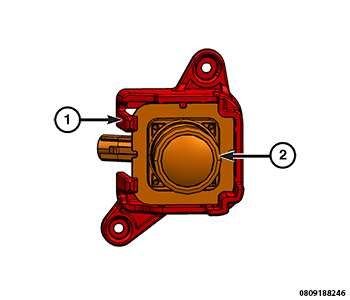

1. Install the surround view camera (2) to the camera bracket (1).

   Courtesy of CHRYSLER GROUP, LLC

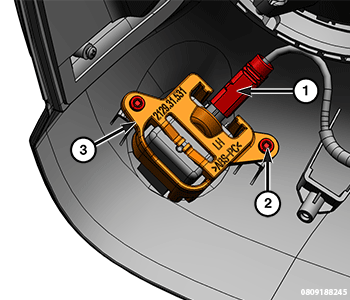

2. Position the surround view camera and bracket from the mirror housing.
3. Install the fasteners (2) securing the surround view camera bracket (3) to the mirror housing and tighten securely.
4. Connect the wire harness connector (1) to the surround view camera.

   Courtesy of CHRYSLER GROUP, LLC

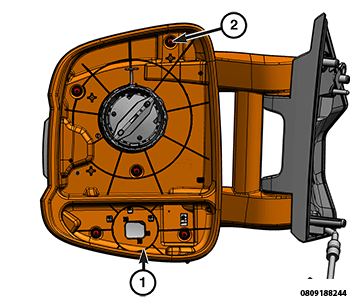

5. Position the two halves of the mirror housing (1) together.
6. Install mirror housing fasteners (2) and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

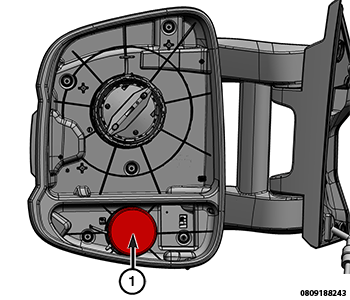

7. Install the spotter mirror glass mount (1).
8. Install the mirror glasses. Refer to MIRROR, OUTSIDE REARVIEW, GLASS, INSTALLATION .
9. Connect the negative battery cable.
10. Perform the camera calibration procedure.

    Refer to MODULE, CENTRAL VISION PROCESSING (CVPM), MODULE PROGRAMMING .
