Camera, Surround View: Installation: Front

Courtesy of CHRYSLER GROUP, LLC

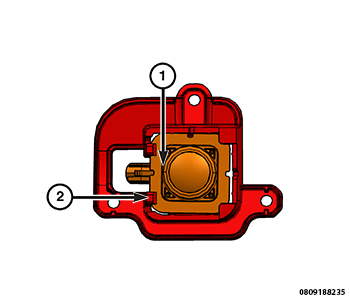

1. Position the surround view camera (1) to the bracket (2) for installation.

   Courtesy of CHRYSLER GROUP, LLC

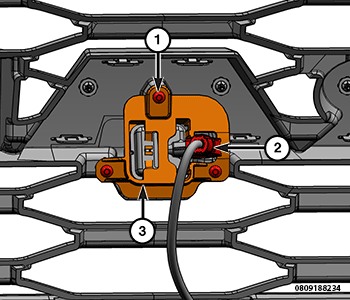

2. Install the fasteners (1) securing the surround view camera and surround view camera bracket (3) to the front fascia. Tighten the fasteners securely.
3. Connect the wire harness connector (2) to the surround view camera.
4. Install the grille assembly. Refer to GRILLE, INSTALLATION .
5. Perform the camera calibration procedure

   Refer to MODULE, CENTRAL VISION PROCESSING (CVPM), MODULE PROGRAMMING .
