Lamp, Courtesy, FOOTWELL: Removal

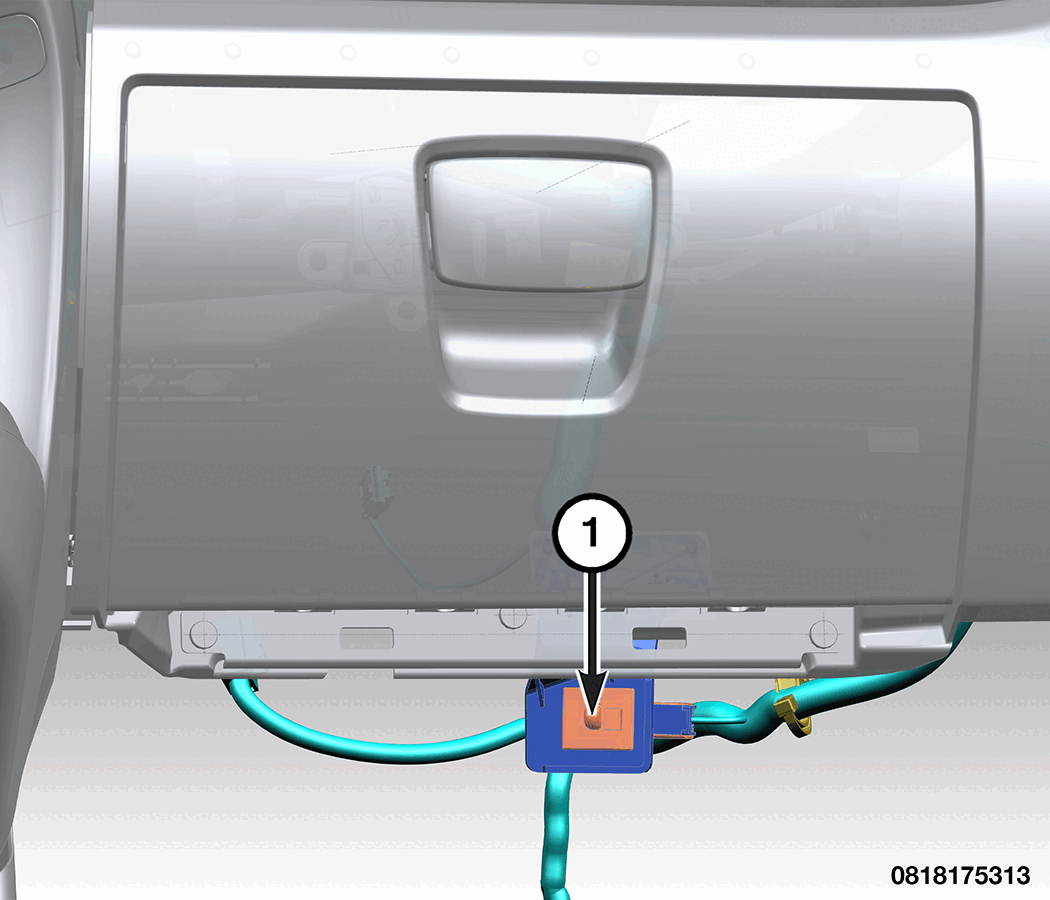

GC0199661Courtesy of CHRYSLER GROUP, LLC
NOTE:

The footwell lamp (1) is illuminated by an LED and is only serviced as an LED unit. Passenger side shown, driver side similar.

  1. Disconnect and isolate the battery negative cable.

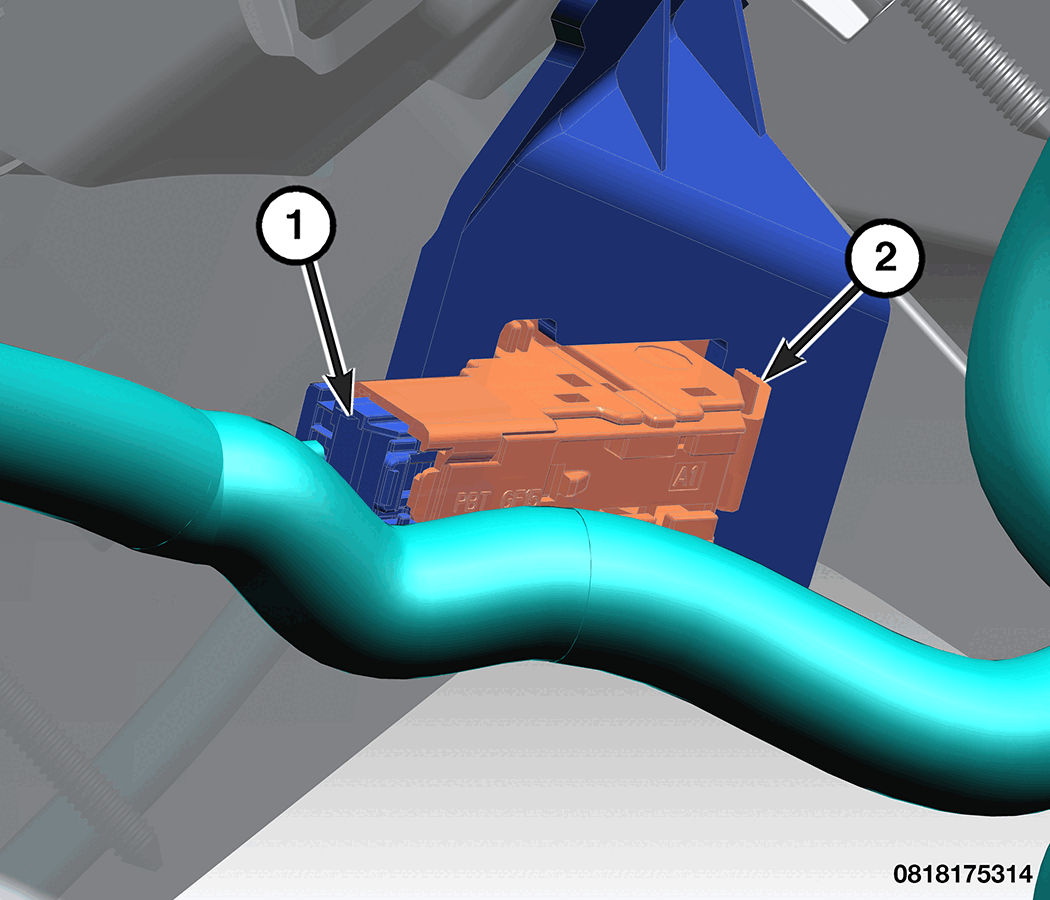

    GC0199664Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the wire harness connector (1) from the footwell LED lamp assembly.
  3. Depress the retention clip (2) to remove the footwell LED lamp assembly from the bracket.
