Lamp And Bulb

REMOVING THE LAMP

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Using a trim stick or equivalent, remove the center courtesy lamp from the headliner.

   Courtesy of CHRYSLER GROUP, LLC

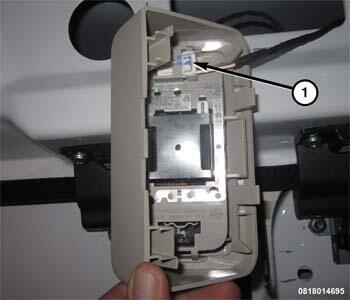

3. Disconnect the electrical connector at the back of the cargo lamp housing (1).
4. Remove the lamp assembly from the vehicle.

REMOVING THE BULB

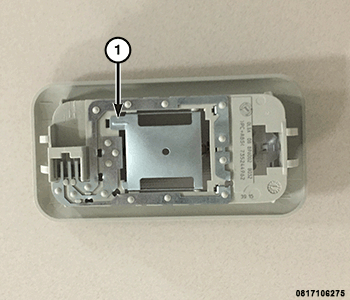

1. Using a trim stick or suitable tool, open the latched cover (1) on the back of the cargo lamp housing.

   Courtesy of CHRYSLER GROUP, LLC

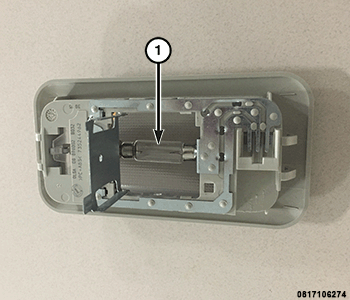

2. Remove the bulb (1) from the two bulb holders in the cargo lamp housing.

Courtesy of CHRYSLER GROUP, LLC
