Module, Trailer Tow (TTM): Description

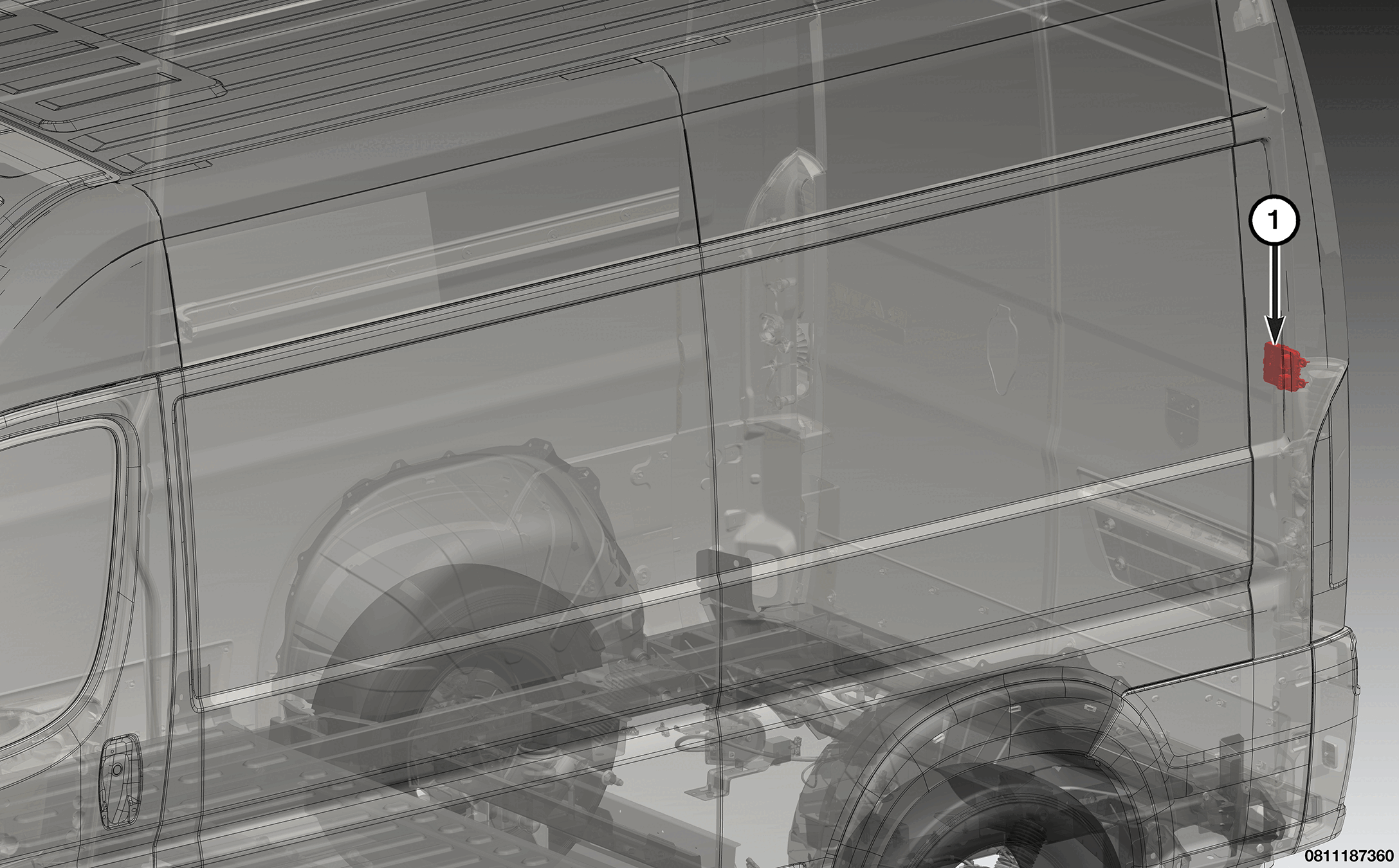

GC0203924Courtesy of CHRYSLER GROUP, LLC

The Trailer Tow Module (TTM) (1) is located midway up the left D-pillar, behind the trim panel.

The TTM controls and monitors the lighting for the trailers that are properly connected to the vehicle. The TTM on this vehicle controls the lights of a trailer only. It does not control the trailer brakes.
