Module, Park Assist (PAM): Removal

  1. Remove the lower glove box assembly. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .

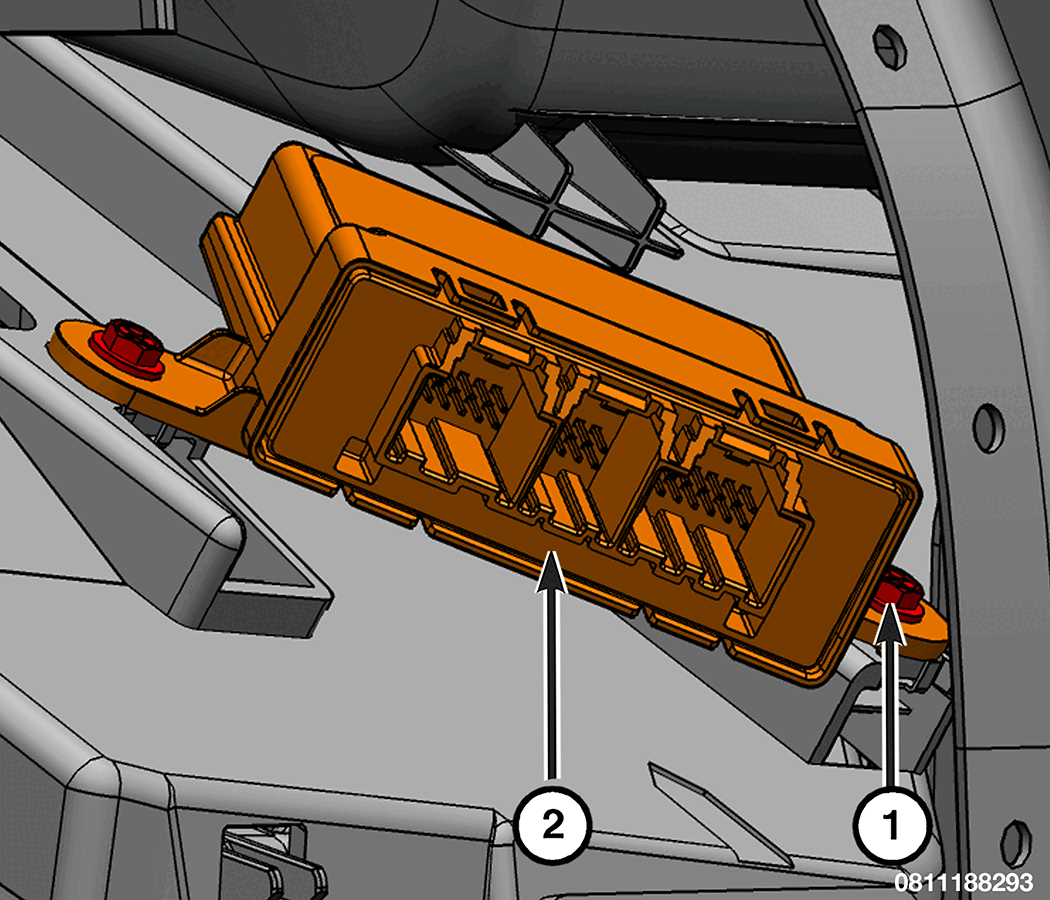

    GC0204102Courtesy of CHRYSLER GROUP, LLC
  2. Remove the fasteners (1) securing the Park Assist Module (PAM) (2) to the instrument panel.
  3. Disconnect the wire harness connectors from the PAM then remove the module from the vehicle.
