Module, Global Telematics Box: Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

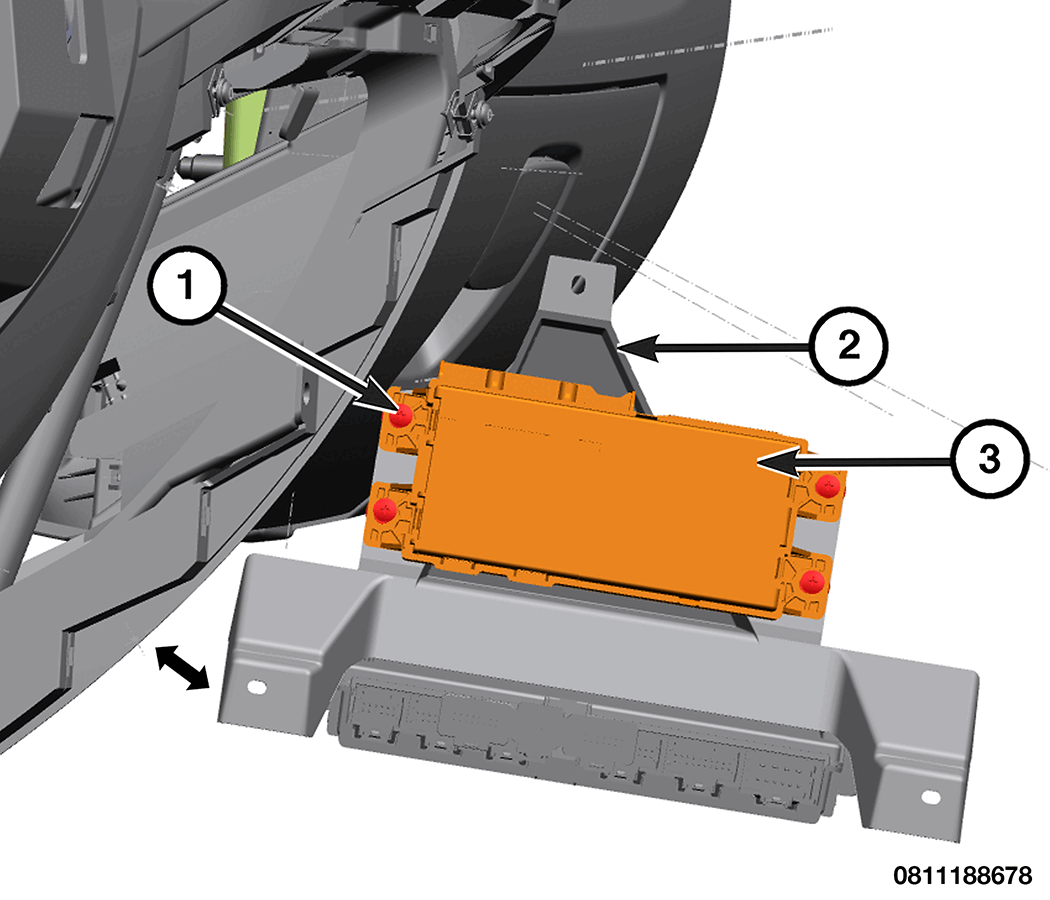

1. Install the Global Telematics Box Module (TBM2) (3) to the center bracket (2).
2. Install the fasteners (1) that secure the TBM2 (3).
3. Connect the wire harness connectors and Antenna connectors to the TBM2.

   Courtesy of CHRYSLER GROUP, LLC

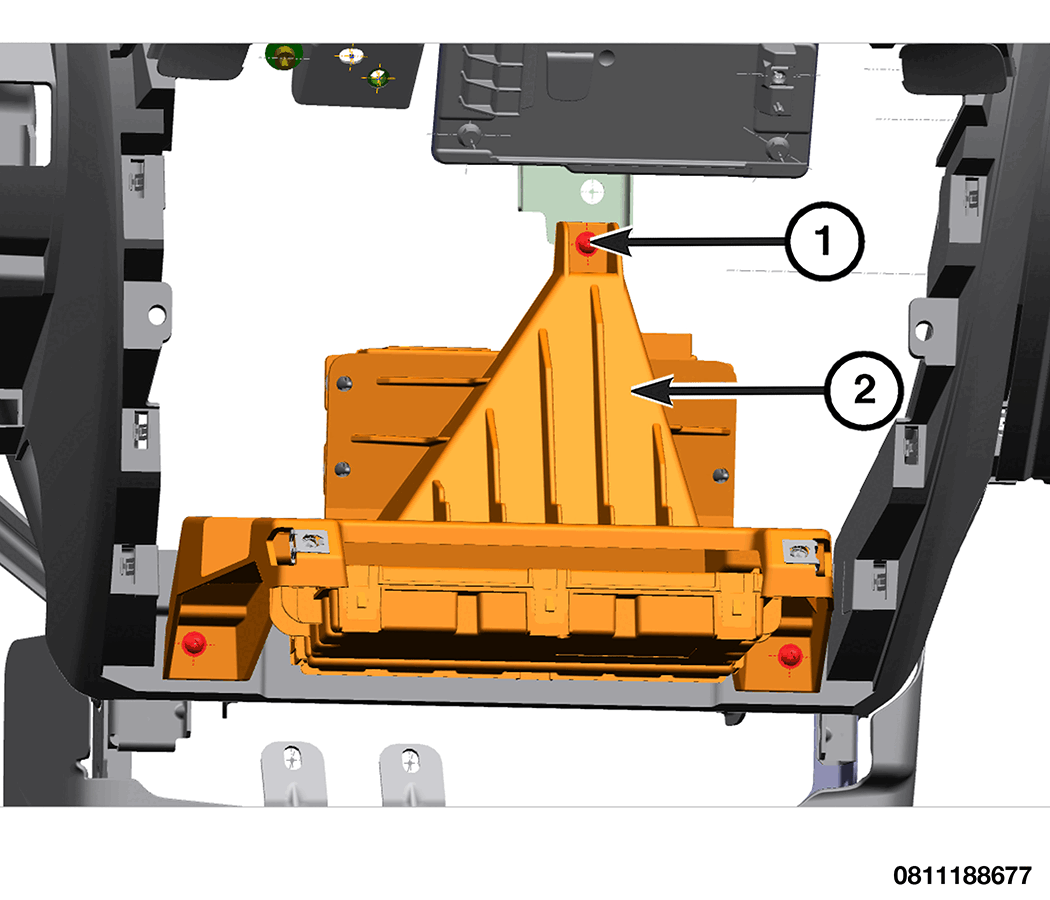

4. Install the center bracket (2) into the instrument panel.
5. Install the center brackets fasteners (1) and tighten securely.
6. Install the instrument panel cupholder. Refer to CUPHOLDER, INSTRUMENT PANEL, INSTALLATION .
7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
