Switch, Remote Radio: Removal
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the Speed Control switches. Refer to SWITCH, SPEED CONTROL, REMOVAL .
- Remove the EVIC switches. Refer to SWITCH, EVIC CONTROL, REMOVAL
.

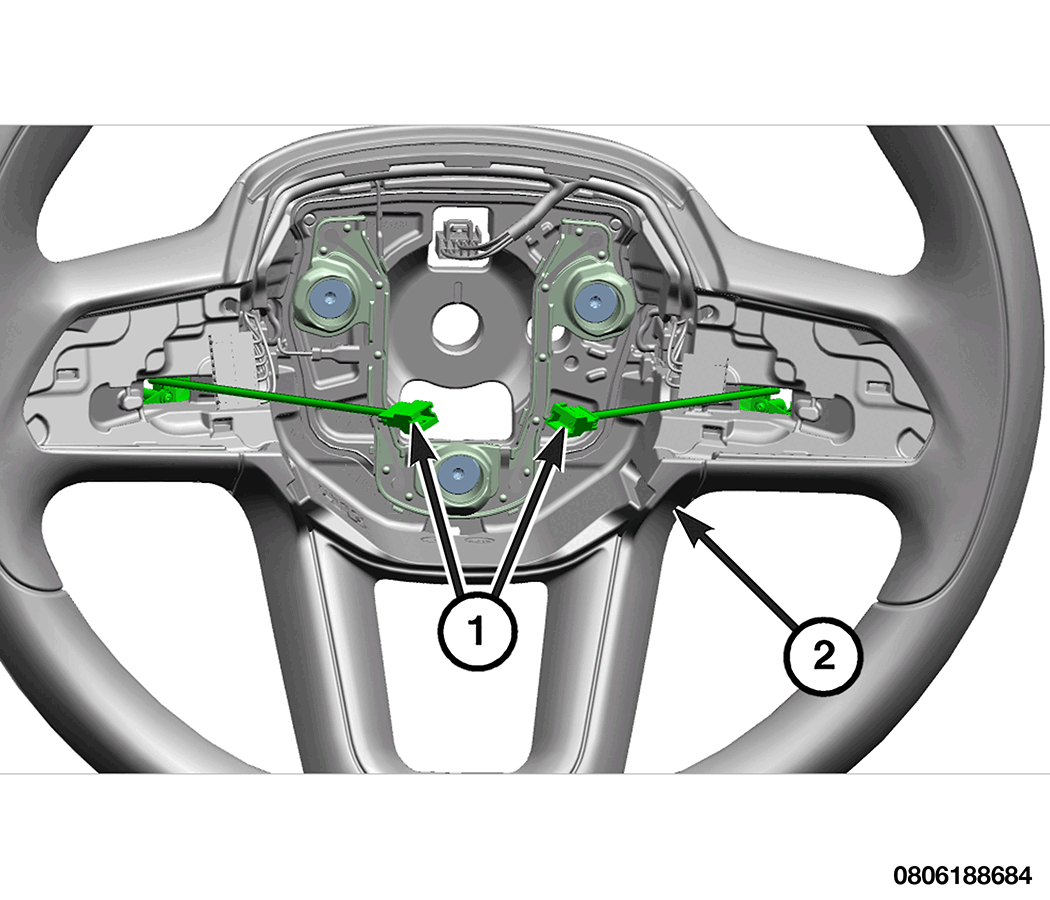

- Disconnect the wire harness connectors (1) for the remote radio switches.

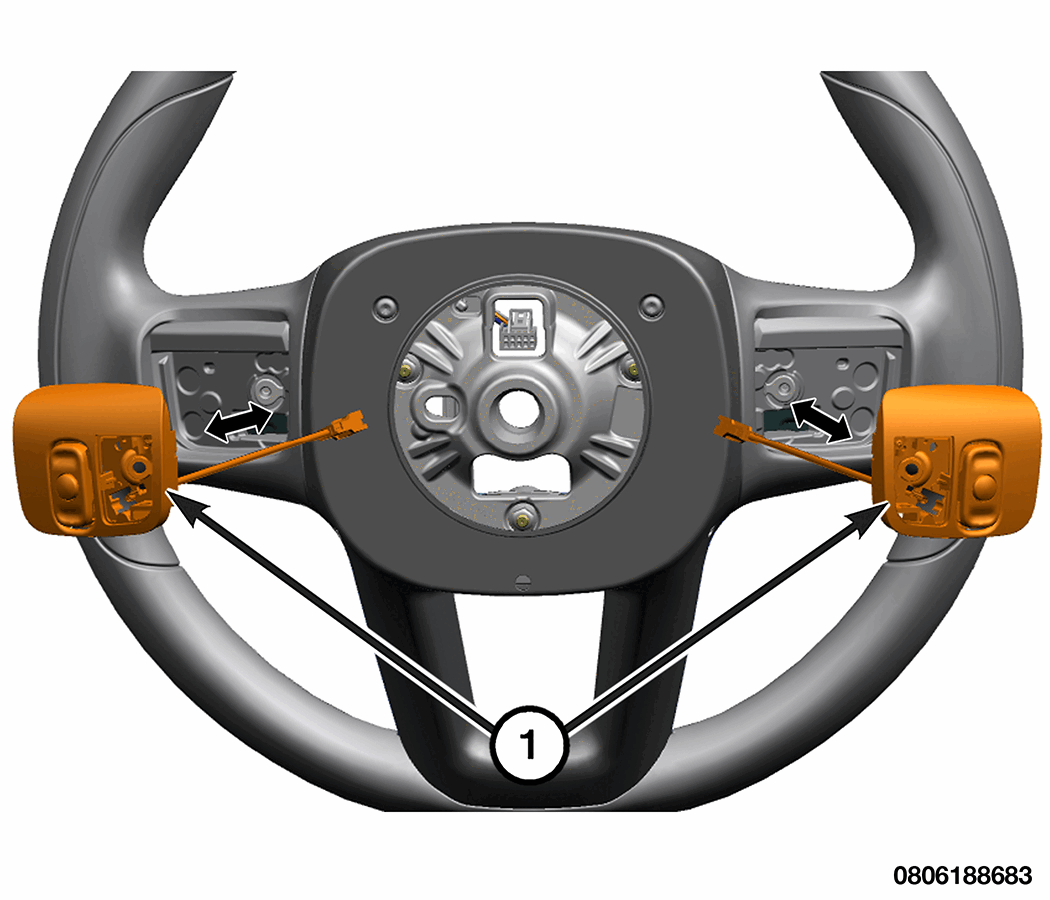

- From the back of the steering wheel, remove the left and right remote radio switches (1).
