Switch, Remote Radio: Description

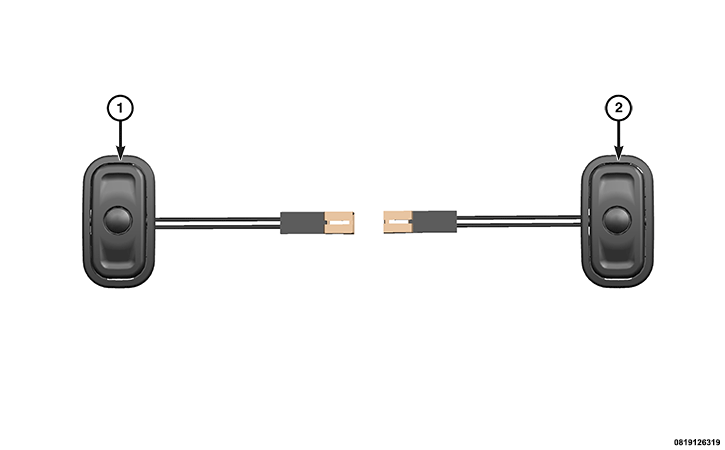

GC0174986Courtesy of CHRYSLER GROUP, LLC

Two rocker-type switches are mounted on the back (instrument panel side) of the steering wheel spokes. The switch (2) on the left spoke is the seek switch and has seek up, seek down, and preset station advance functions. The switch (1) on the right spoke is the volume control switch and has volume up, and volume down functions. The switch on the right spoke also includes a "mode" control that allows the driver to sequentially select AM radio, FM radio, Media Hub or Satellite Digital Audio Radio Services (SDARS).
