Front Door

  1. Disconnect and isolate the negative battery cable.
    GC0160178Courtesy of CHRYSLER GROUP, LLC

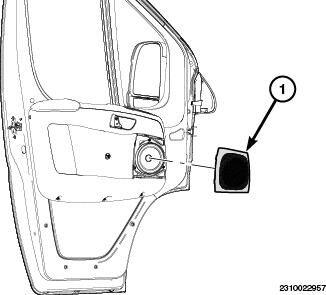

  2. Remove the front door speaker trim panel (1).
    GC0160588Courtesy of CHRYSLER GROUP, LLC

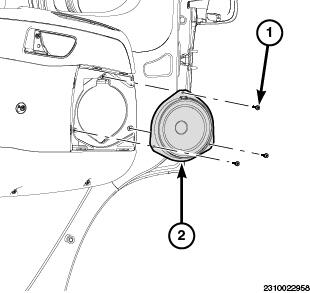

  3. Remove the speaker mounting fasteners (1).
  4. Remove the speaker from the door and disconnect the wire harness connector (2).
