Audio/Video/Entertainment/Connectivity (Service Information): Speaker: Installation: Tweeter

Courtesy of CHRYSLER GROUP, LLC

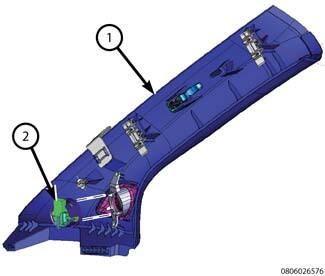

1. Install the tweeter (2) into the A-pillar trim panel clips.
2. Connect the wiring harness to the tweeter.
3. Install the A-pillar trim panel (1). Refer to PANEL, A-PILLAR TRIM, INSTALLATION .
4. Connect the negative battery cable.
