Audio/Video/Entertainment/Connectivity (Service Information): Radio: Description

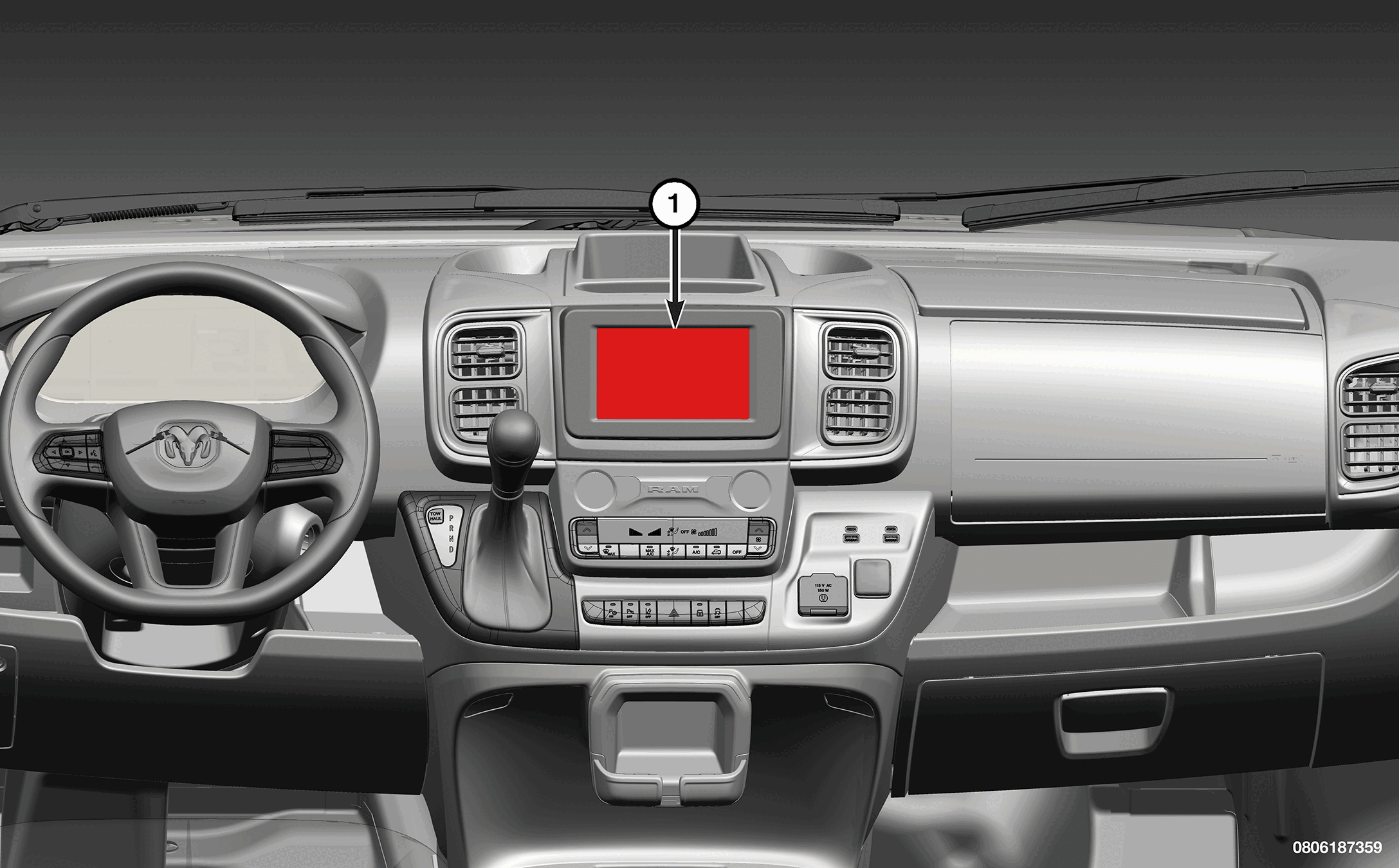

178 mm (7.0 inch) Radio shown, 257 mm (10.1 inch) with Display Screen Module (DSM) and Radio similar
There are two R1 radios (1) available in this vehicle; the standard radio is an R1 Low (R1L) Uconnect® 5 (without NAV) radio with an integral 178 mm (7.0 inch) display, the optional radio is an R1 High (R1H) Uconnect® 5 NAV radio with a 257 mm (10.1 inch) disassociated display called a DSM. Each radio has a distinct chassis design and is identified by a sales code.
Models equipped with the 257 mm (10.1 inch) DSM have the radio located directly forward of the DSM and the radio is not integral with the DSM.
For more information on each radio's features and options, refer to the Uconnect® web site (https://www.driveuconnect.com/ ) or the owner's manual.
The radio cannot be adjusted or repaired. If the radio is damaged or ineffective, it must be replaced.
Radios that include a 257 mm (10.1 inch) DSM have a disassociated full color touchscreen display. For the removal and installation of the DSM. Refer to MODULE, DISPLAY SCREEN (DSM), REMOVAL .
