Media Hub: Installation

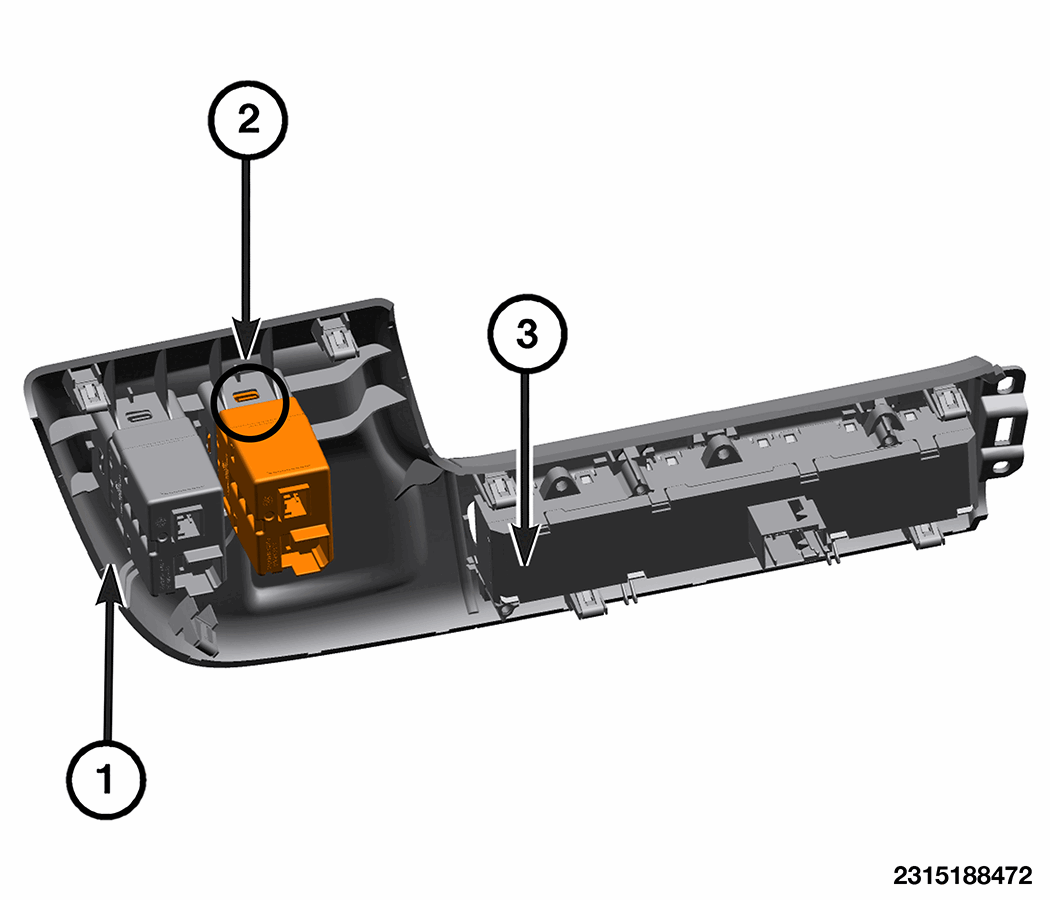

GC0204054Courtesy of CHRYSLER GROUP, LLC
  1. Install the media hub (3) into the instrument panel trim panel (1) and verify the retaining tabs (2) are fully engaged.
  2. Install the instrument panel trim panel. Refer to PANEL, INSTRUMENT PANEL TRIM, INSTALLATION .
