Camera, Rear: Installation

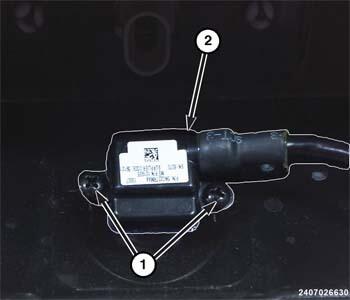

GC0160684Courtesy of CHRYSLER GROUP, LLC
  1. Install the camera (2) into the center clearance lamp housing and fasten the retainers (1).
  2. Connect the wire harness connector.
  3. Install the Center High Mount Stop Lamp housing. Refer to LAMP, CLEARANCE, INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
