Antenna, Satellite: Installation

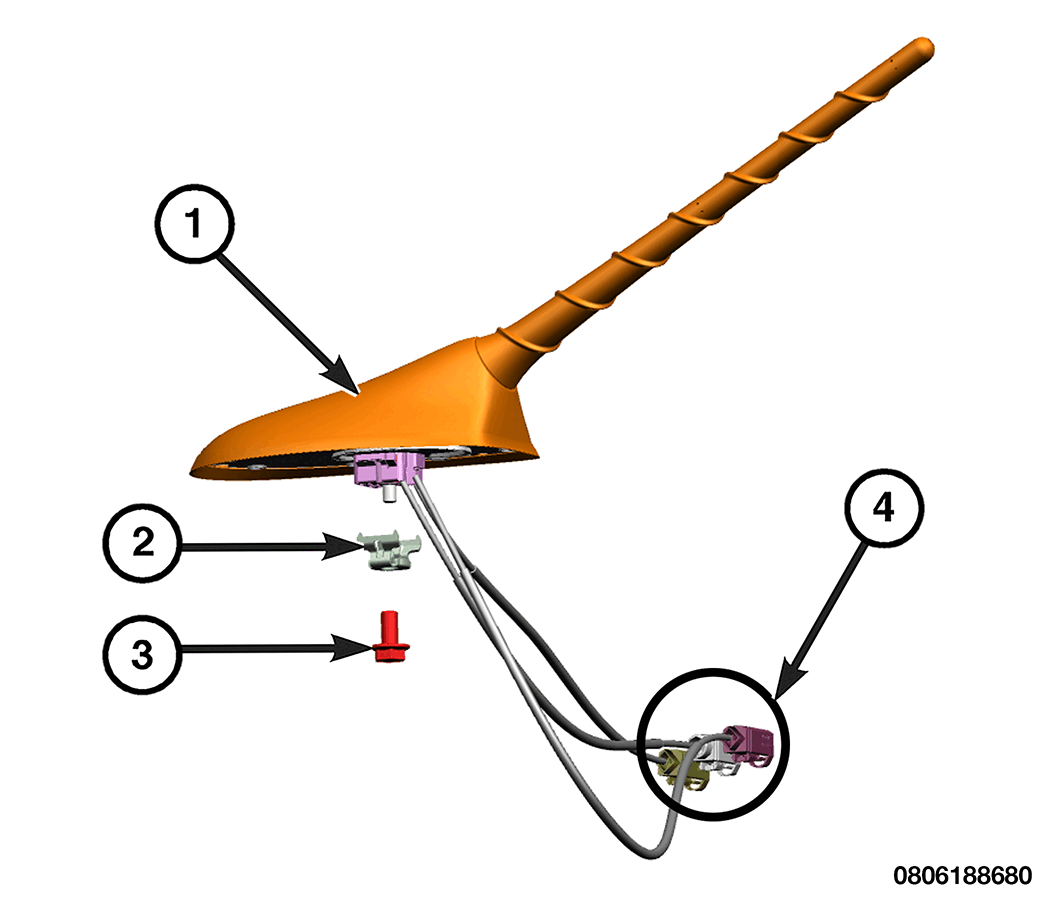

GC0203935Courtesy of CHRYSLER GROUP, LLC
  1. Route the wire harness connectors through the roof and install the satellite antenna (1).
  2. Install the satellite antenna retainer (2) and mounting bolt (3). Tighten the bolt securely.
  3. Connect the wire harness connectors (4).
  4. Install the headliner. Refer to HEADLINER, INSTALLATION .
