Antenna, Satellite: Description

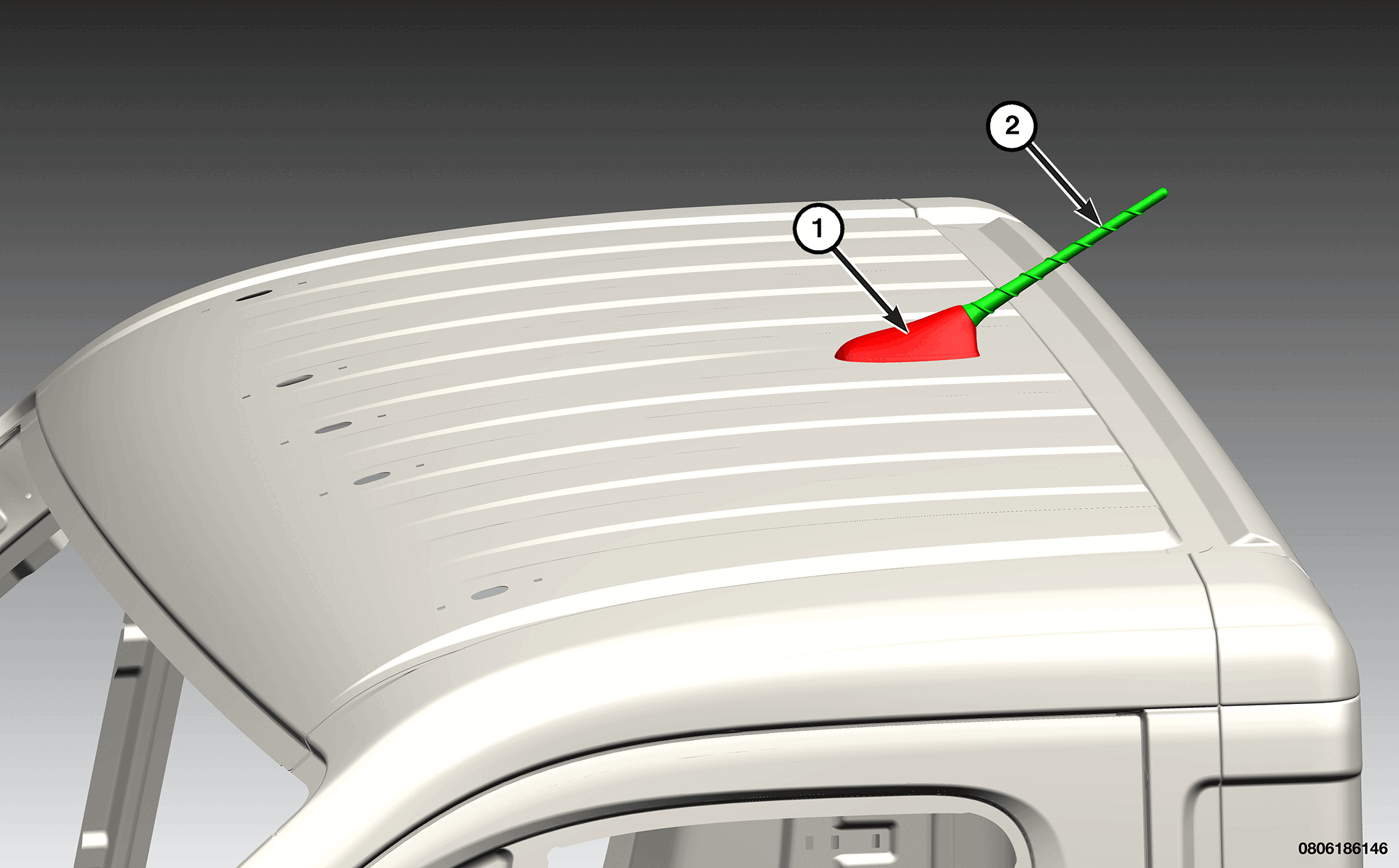

High Roof Models

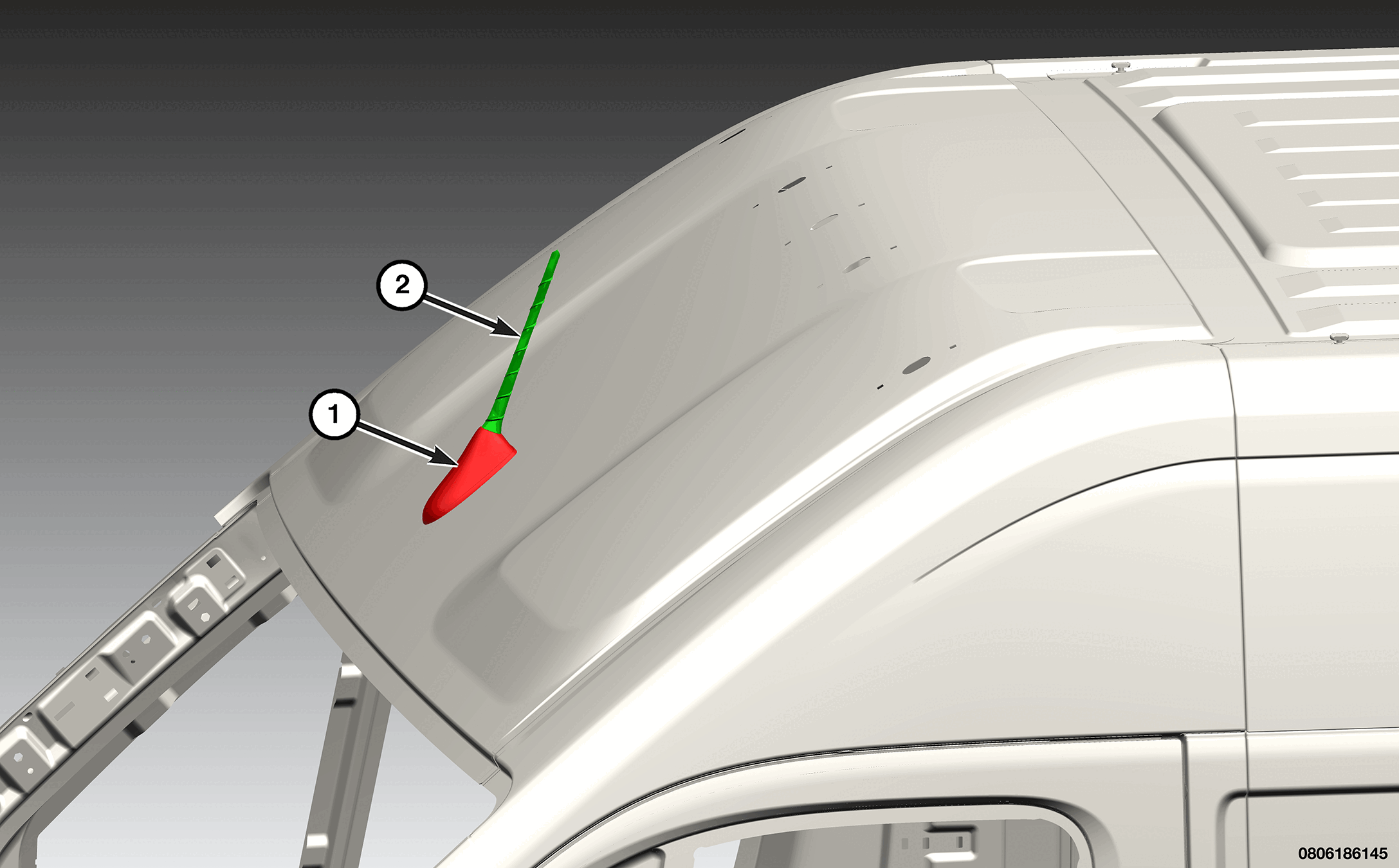

Low Roof Models
All models are equipped with a combination antenna (1 and 2) for AM/FM, Satellite Digital Audio Radio Service (SDARS), Global Positioning System (GPS) navigation and Long Term Evolution 1 (LTE1) cellular signal reception, as equipped. The antenna will be capable of only what the audio/telematics system is capable. Therefore, if the system is only capable of AM/FM reception, the antenna is only capable of AM/FM reception. If the system is capable of AM/FM and GPS reception, then the antenna is only capable of AM/FM and GPS reception. If the system is capable of AM/FM, GPS, SDARS and LTE1 reception, then the antenna is capable of all four types of signal reception.
The combination antenna consists of a base unit (1) and a removable mast (2).
The combination antenna must have open space in which to operate. Items carried on the roof, or parking inside for example, can have an effect on the antenna's ability to receive signals.
For information on diagnosing AM/FM reception issues or the antenna and cables, perform the POOR OR NO AM/FM AUDIO RECEPTION test, refer to DIAGNOSIS AND TESTING - POOR OR NO AM/FM AUDIO RECEPTION .
For information on diagnosing SDARS reception issues, perform the POOR OR NO SATELLITE AUDIO RECEPTION test, refer to DIAGNOSIS AND TESTING - POOR OR NO SATELLITE AUDIO RECEPTION .
For information on diagnosing GPS reception issues, perform the POOR OR NO GPS RECEPTION test, refer to POOR OR NO GPS RECEPTION .
For information on diagnosing LTE1 reception issues, perform the POOR OR NO CELLULAR RECEPTION test, refer to POOR OR NO CELLULAR RECEPTION .
