Antenna, BLUETOOTH/WIFI: Installation

Courtesy of CHRYSLER GROUP, LLC

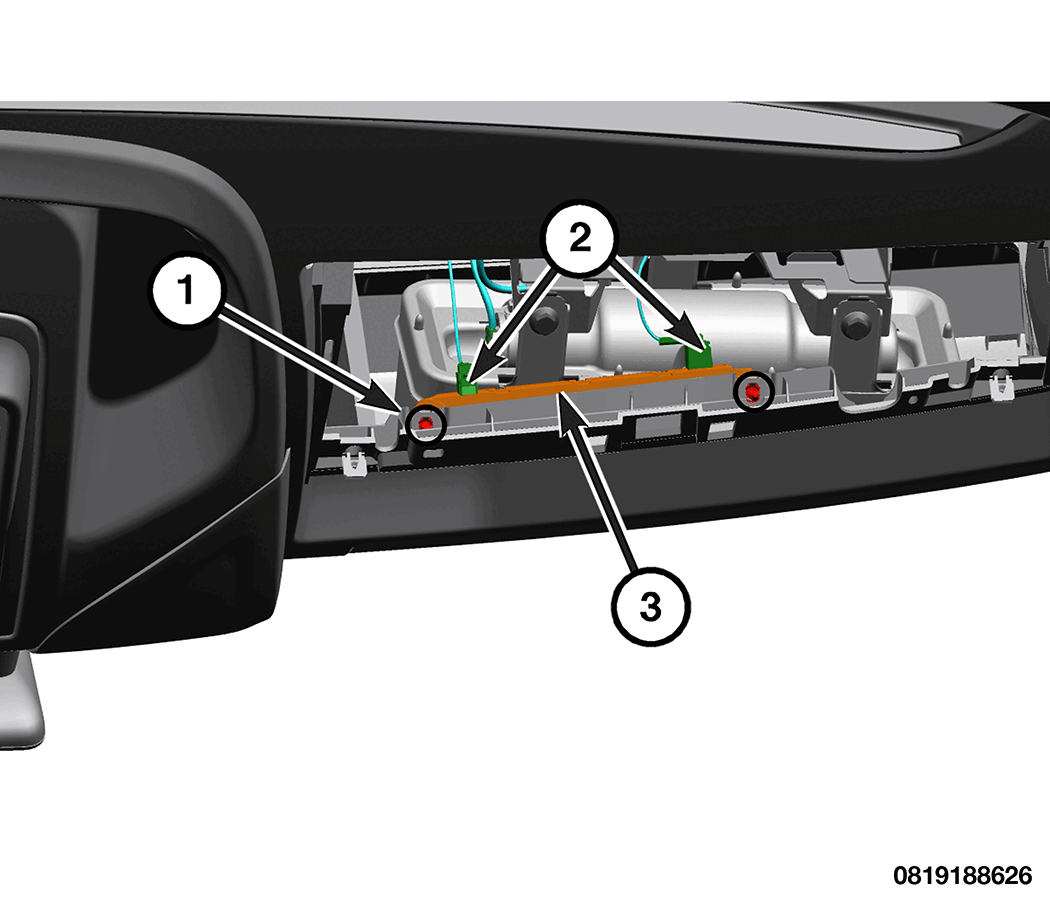

1. Position the bluetooth antenna (3) to the instrument panel.
2. Install and securely tighten the two fasteners (1).
3. Connect the antenna wire harness connectors (2).
4. Install the upper glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
