Removal - Front Lamp Unit

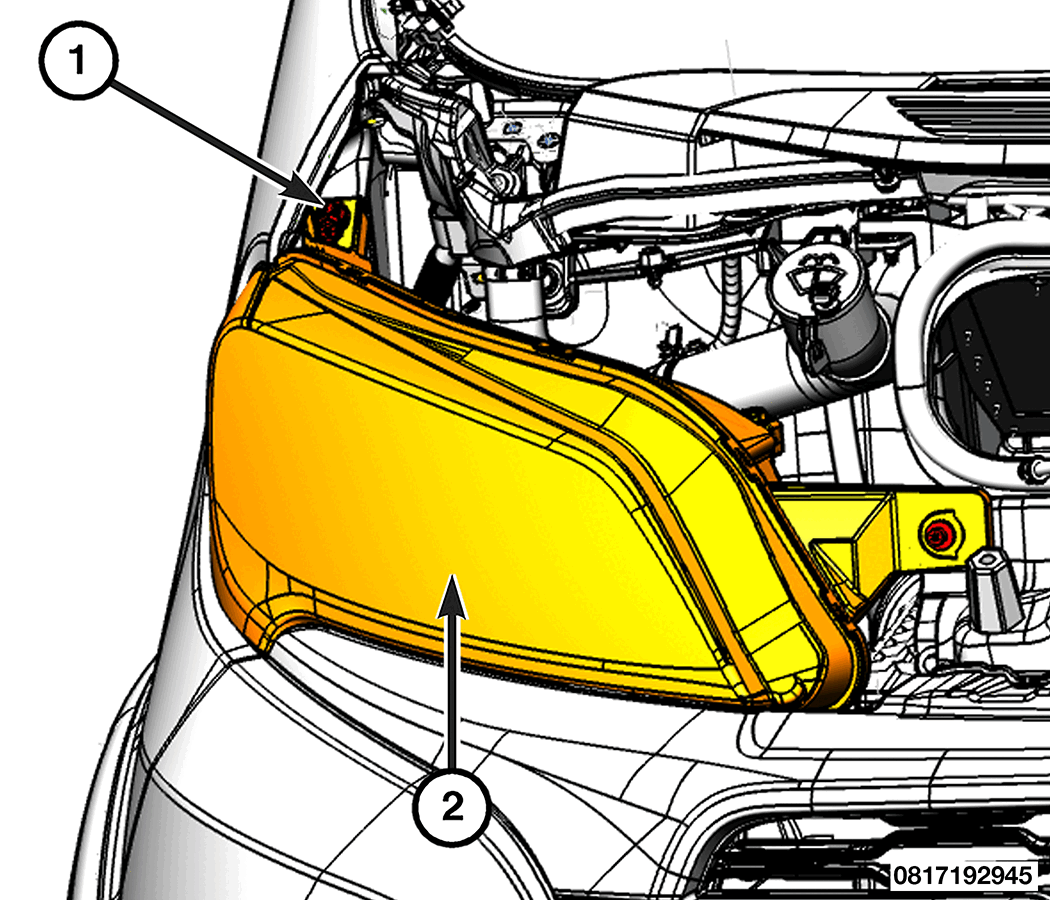

GC0206924Courtesy of CHRYSLER GROUP, LLC
  1. Remove the fasteners (1) securing the front lamp assembly (2).

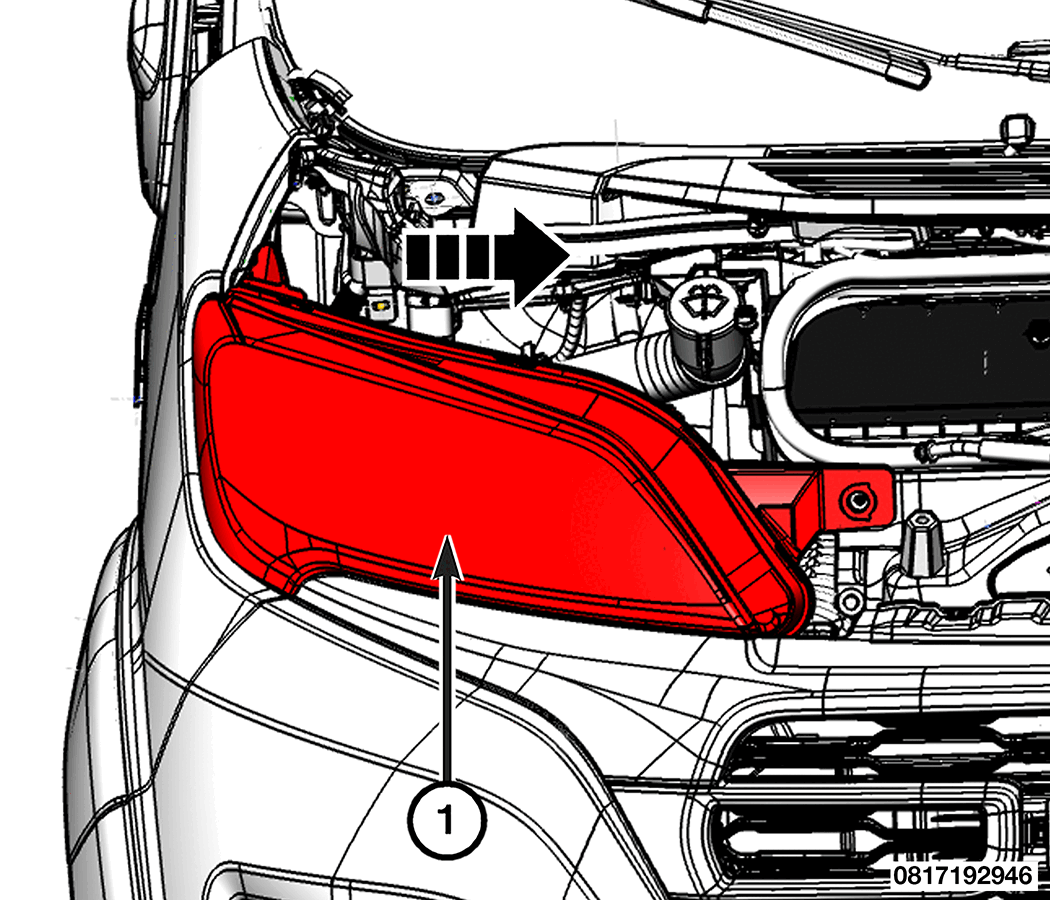

    GC0206928Courtesy of CHRYSLER GROUP, LLC
  2. Slide the front lamp assembly (1) inboard towards the radiator to disengage latch feature, then disconnect the wire harness connector.
  3. Remove the front lamp assembly from the vehicle.
