Removal - Bulb - Turn Signal Lamp

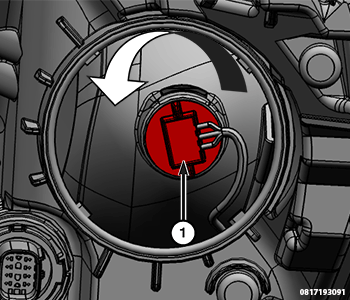

  1. Remove the turn signal lamp bulb access cover by rotating the cover counter-clockwise.
    GC0206969Courtesy of CHRYSLER GROUP, LLC
  2. Rotate the turn signal lamp bulb socket (1) counter-clockwise and remove it from the front lamp assembly.
    GC0206966Courtesy of CHRYSLER GROUP, LLC
  3. Remove the turn signal lamp bulb (1) from the turn signal lamp bulb socket (2).
