Removal - Bulb - Headlamp
- Remove the head lamp bulb access cover by rotating the cover counter-clockwise.

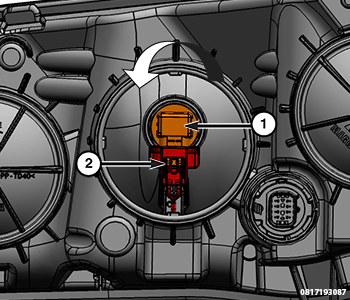

- Disconnect the headlamp wire harness connector (2) from the by pressing and releasing the retaining tab in the direction shown in the illustration.
- Rotate the headlamp bulb socket (1) counter-clockwise and remove it from the front lamp assembly.
- Remove the headlamp bulb (1) from the headlamp bulb socket (2).
