Switch, Parking Brake: Installation
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
- Connect the park brake switch wire harness connector.

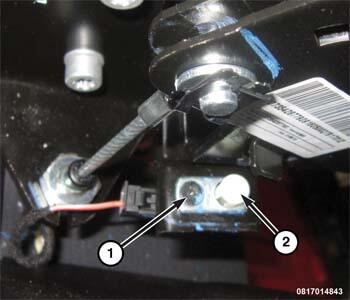

- Install and securely tighten the fastener (1) securing the park brake switch (2) to the park brake lever.
- Position the trim bezel cover down the park brake lever and connect the heated seat switch wire harness connector.
- Install the trim bezel cover down the parking brake lever.

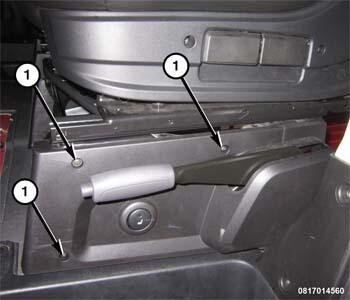

- Insert the fasteners (1) securing the seat bezel.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Turn the ignition ON and check the park brake switch for proper operation with the parking brake lever applied (indicator illuminated) and released (indicator off).
