Roll Up Door

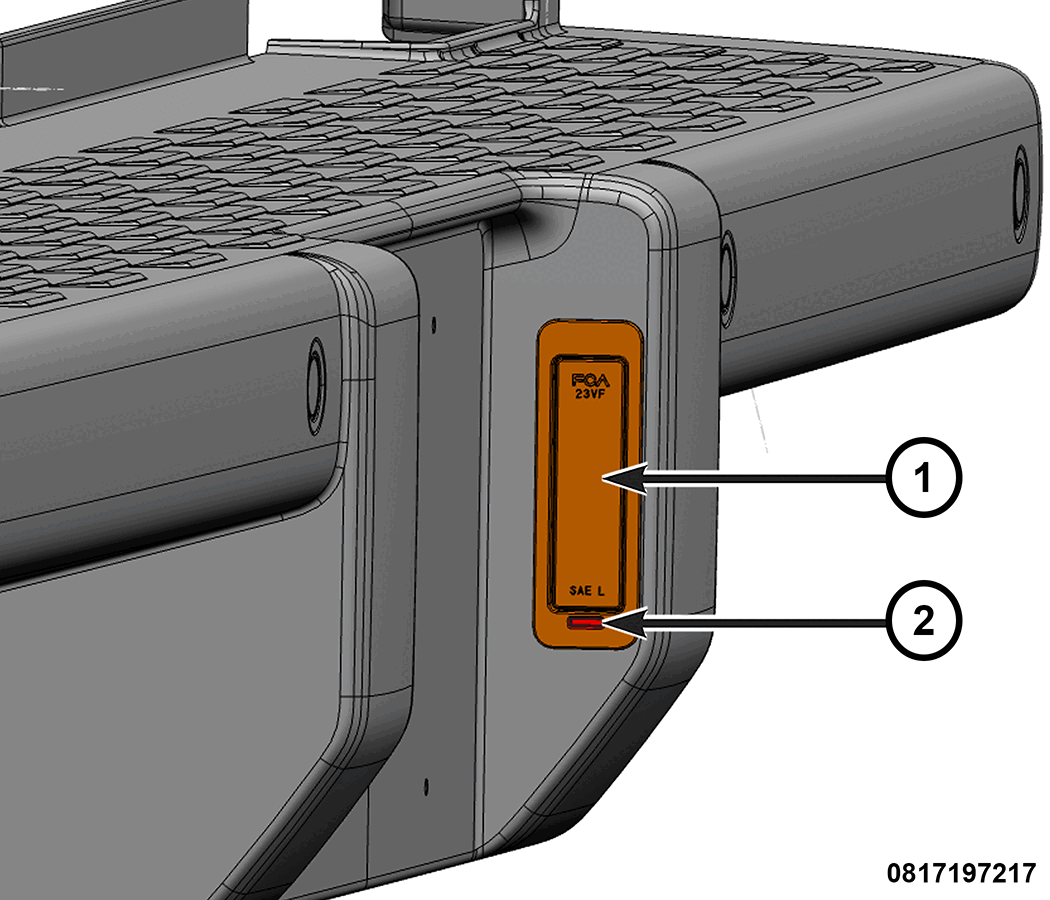

GC0206935Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick or equivalent, push up on the tab (2) and remove the license plate lamp (1) from the rear fascia.
  2. Disconnect the wire harness connector and remove the license plate lamp from the vehicle.
