Lamp, Fog: Installation

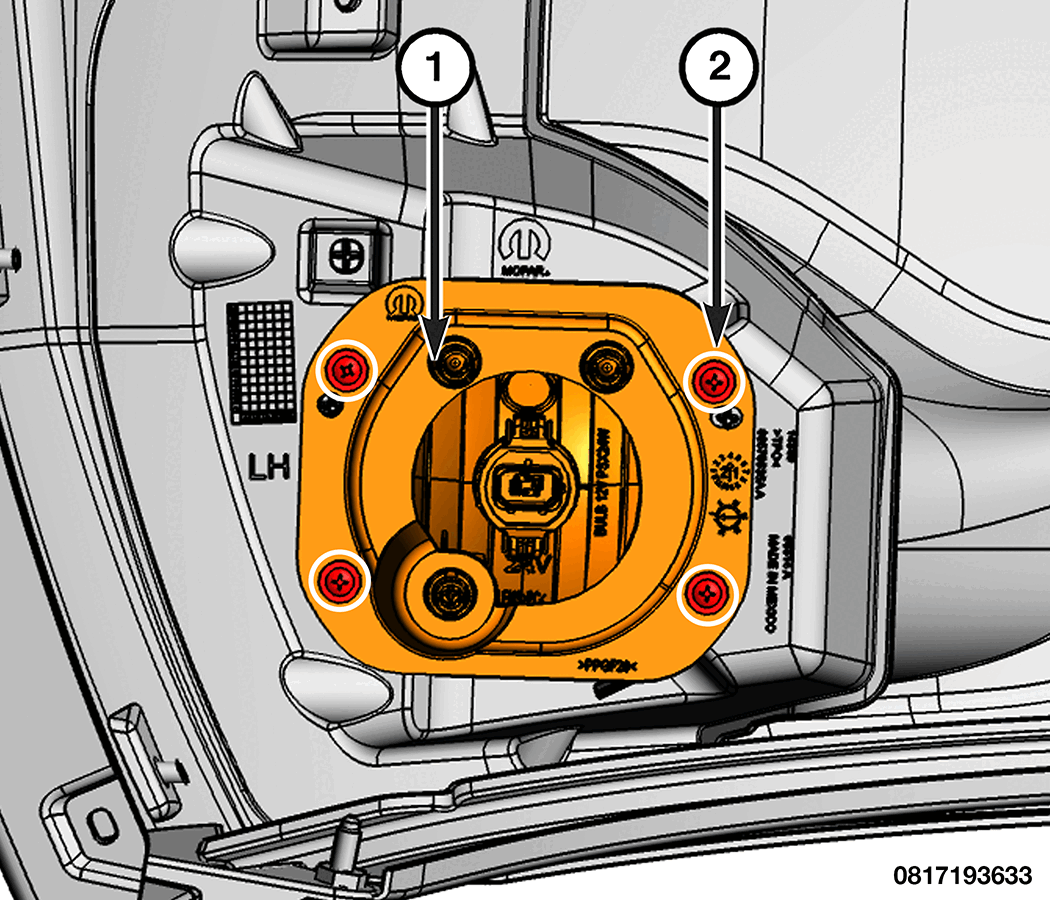

- Position the fog lamp assembly (1) for installation.
- Install and securely tighten the fog lamp fasteners (2).
- If only the fog lamp bulb was removed, install the new bulb into the socket and install the fog lamp wire harness connector. The connector inserts vertically and once properly seated, twist the connector horizontally.

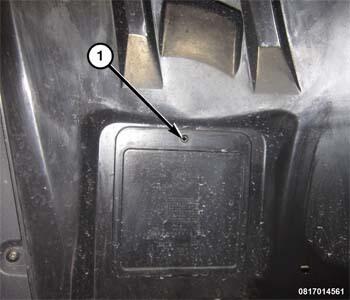

- Install the access panel cover to the wheel well and secure using one fastener as shown above (1).
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- If the fog lamp assembly was replaced, perform a fog lamp alignment procedure. Refer to STANDARD PROCEDURE - LAMP ALIGNMENT .
