Lamp, Clearance: Removal: Front

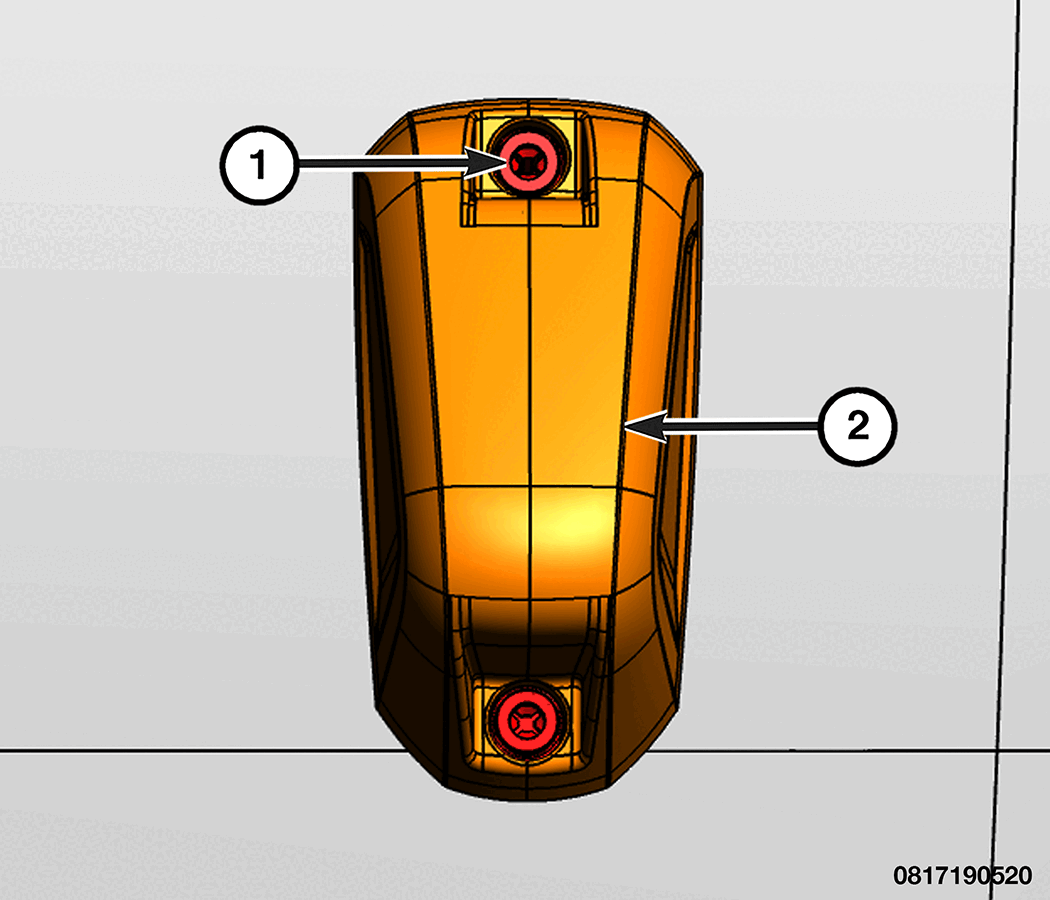

GC0203975Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the fasteners (1) from the appropriate front clearance lamp (2).
  3. Disconnect the wire harness connector from the back of the front clearance lamp.
  4. Remove the front clearance lamp from the vehicle.
