Switch-Swivel Seat-Passenger C2 (Standard) Connector End View (D2290B)

Harness-Family: Seat_Right

Color: BLACK

Gender: FEMALE

Part Number: SI2010-B2

Part Description: Not Available

Connector No: D2290B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Switch-Swivel Seat-Passenger C2 Connector End View (Standard)
GCWD1233577Courtesy of CHRYSLER

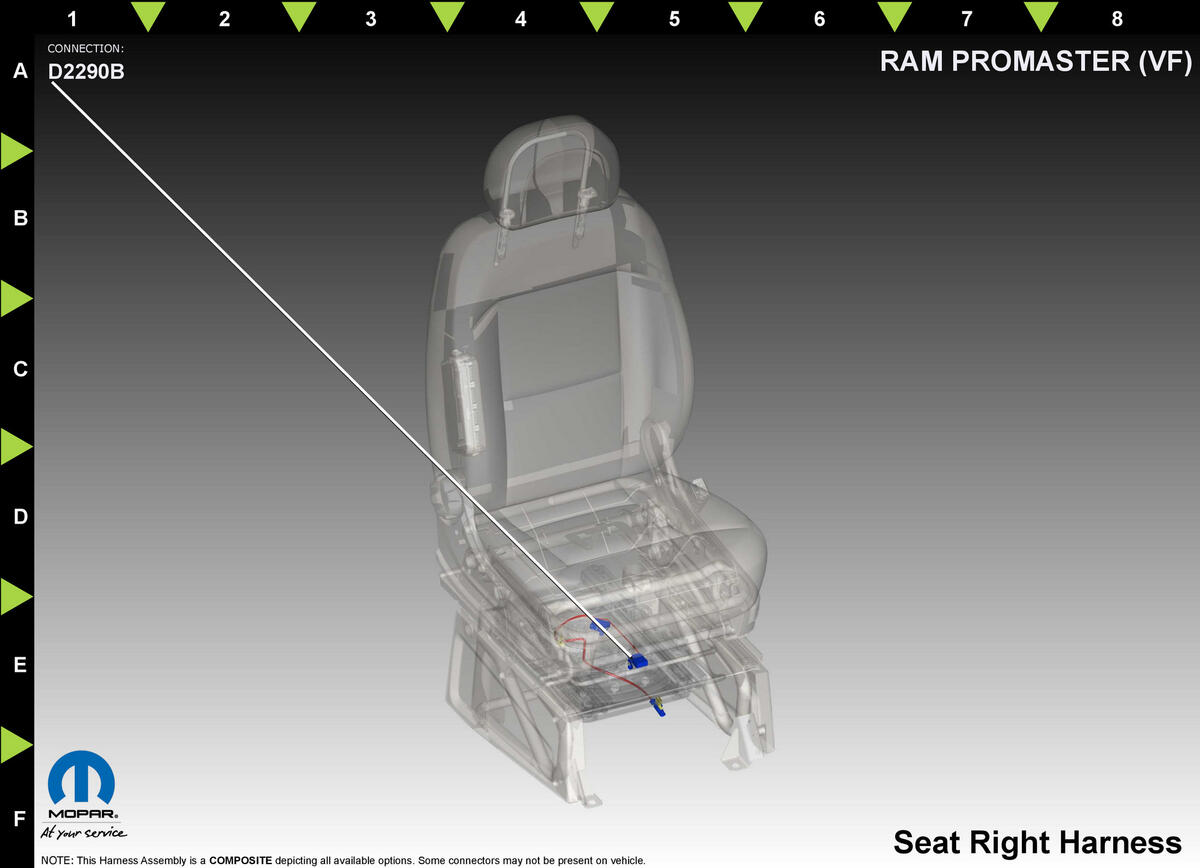

Fig 2: Switch-Swivel Seat-Passenger C2 Component Location (Standard)
GCWD1293892Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z107 DB 0.5 GROUND PASSENGER SWIVEL SEAT
2 P168 GY 0.5 PASSENGER SWIVEL SEAT SWITCH SENSE PASSENGER SWIVEL SEAT
(1) Pins not listed are not used for this connector
