Switch-Seat Heater-Passenger (Standard) Connector End View (D2287A)

Harness-Family: Seat_Heater_Rt

Color: NATURAL

Gender: FEMALE

Part Number: CF008WHT

Part Description: Not Available

Connector No: D2287A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Switch-Seat Heater-Passenger Connector End View (Standard)
GCWD1233576Courtesy of CHRYSLER

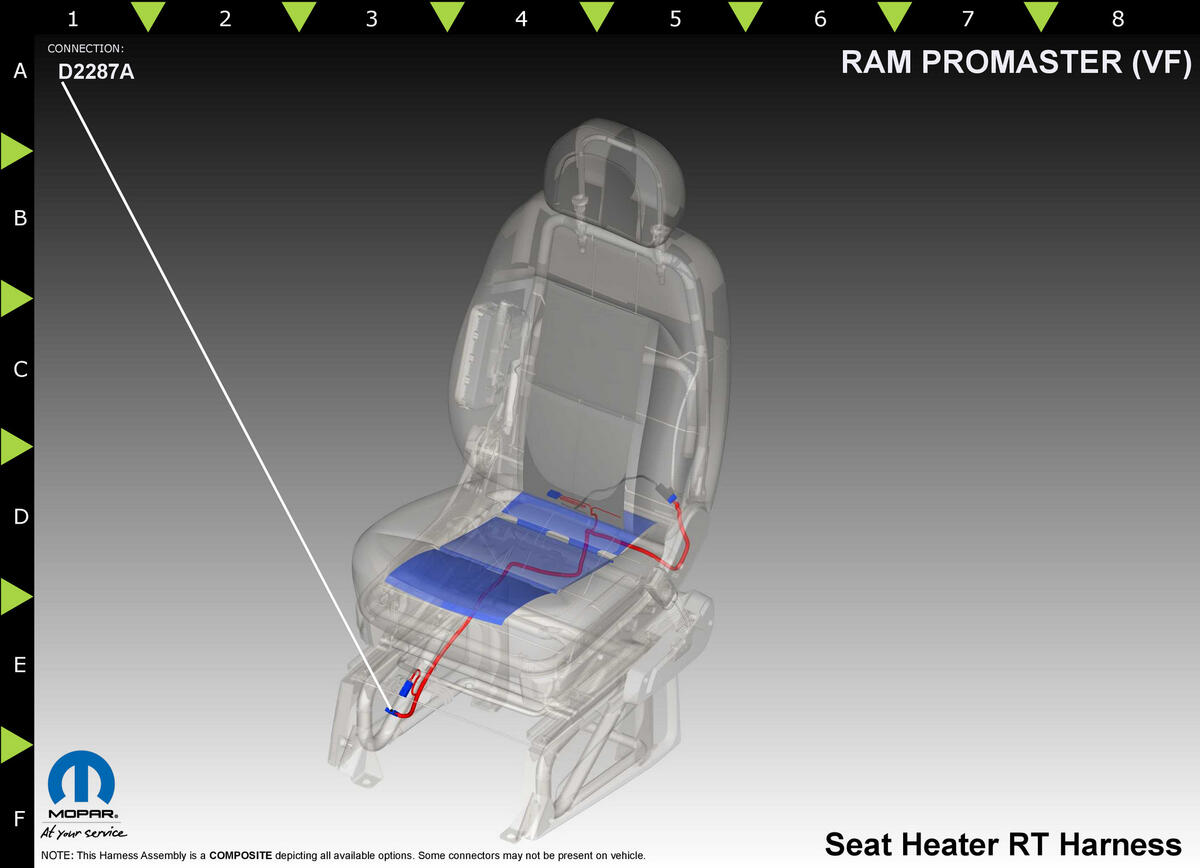

Fig 2: Switch-Seat Heater-Passenger Component Location (Standard)
GCWD1293726Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P188 RD 0.75 RIGHT FRONT SEAT HEATER CONTROL HEATED PASSENGER SEAT
2 P188 YE 0.75 RIGHT FRONT SEAT HEATER CONTROL HEATED PASSENGER SEAT
3 P188 RD 0.75 RIGHT FRONT SEAT HEATER CONTROL HEATED PASSENGER SEAT
4 Z924 BK 0.75 GROUND HEATED PASSENGER SEAT
(1) Pins not listed are not used for this connector
