Switch-Door Handle-Exterior-Right Front (Standard) Connector End View (D2506A)

Harness-Family: Door_Front_Right

Color: BLACK

Gender: MALE

Part Number: 1/12636/97

Part Description: Not Available

Connector No: D2506A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Switch-Door Handle-Exterior-Right Front Connector End View (Standard)

Courtesy of CHRYSLER

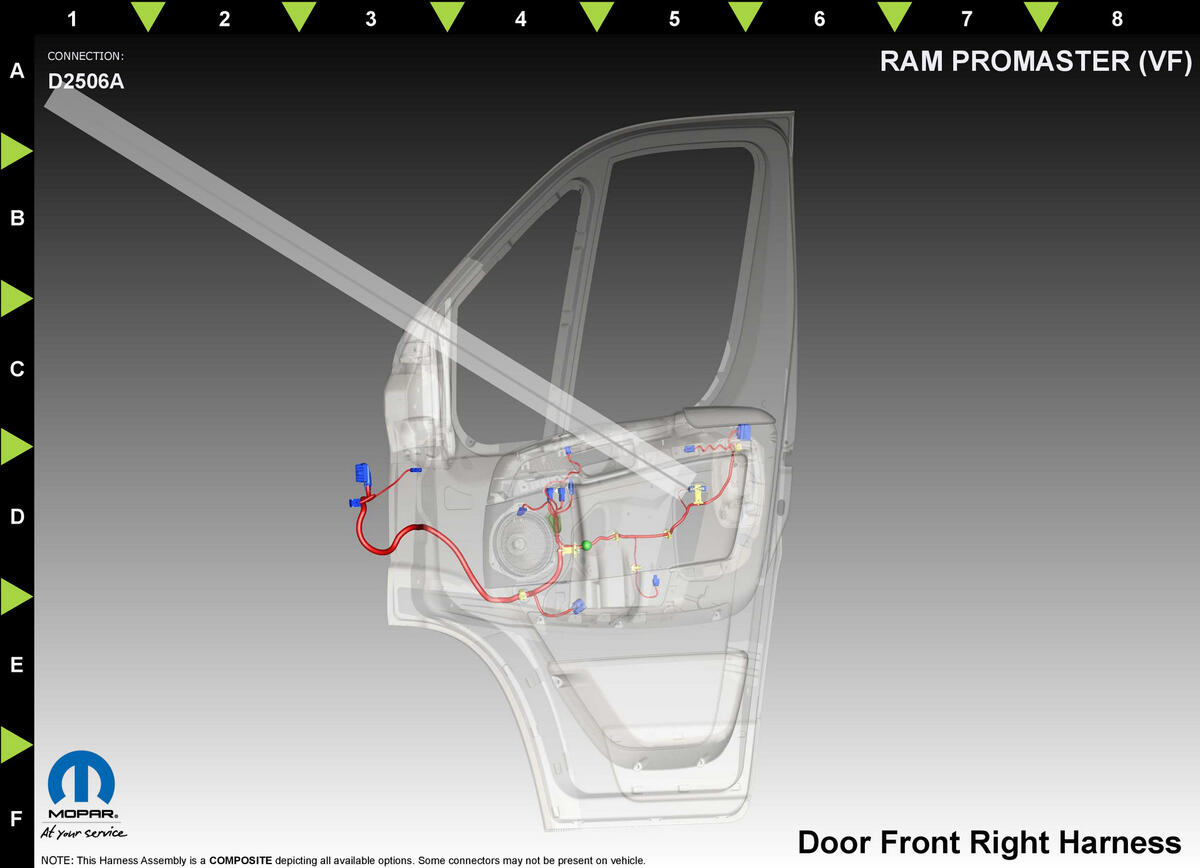

Fig 2: Switch-Door Handle-Exterior-Right Front Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P400

VT/GN

0.35

RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE

N/A

Z903

YE/GY

0.35

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
