Solenoid-VVT Exhaust 1/2 (Standard) Connector End View (D63A)

Harness-Family: Injector

Color: BLACK

Gender: FEMALE

Part Number: 805-120-531

Part Description: Not Available

Connector No: D63A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Solenoid-Vvt Exhaust 1/2 Connector End View (Standard)

Courtesy of CHRYSLER

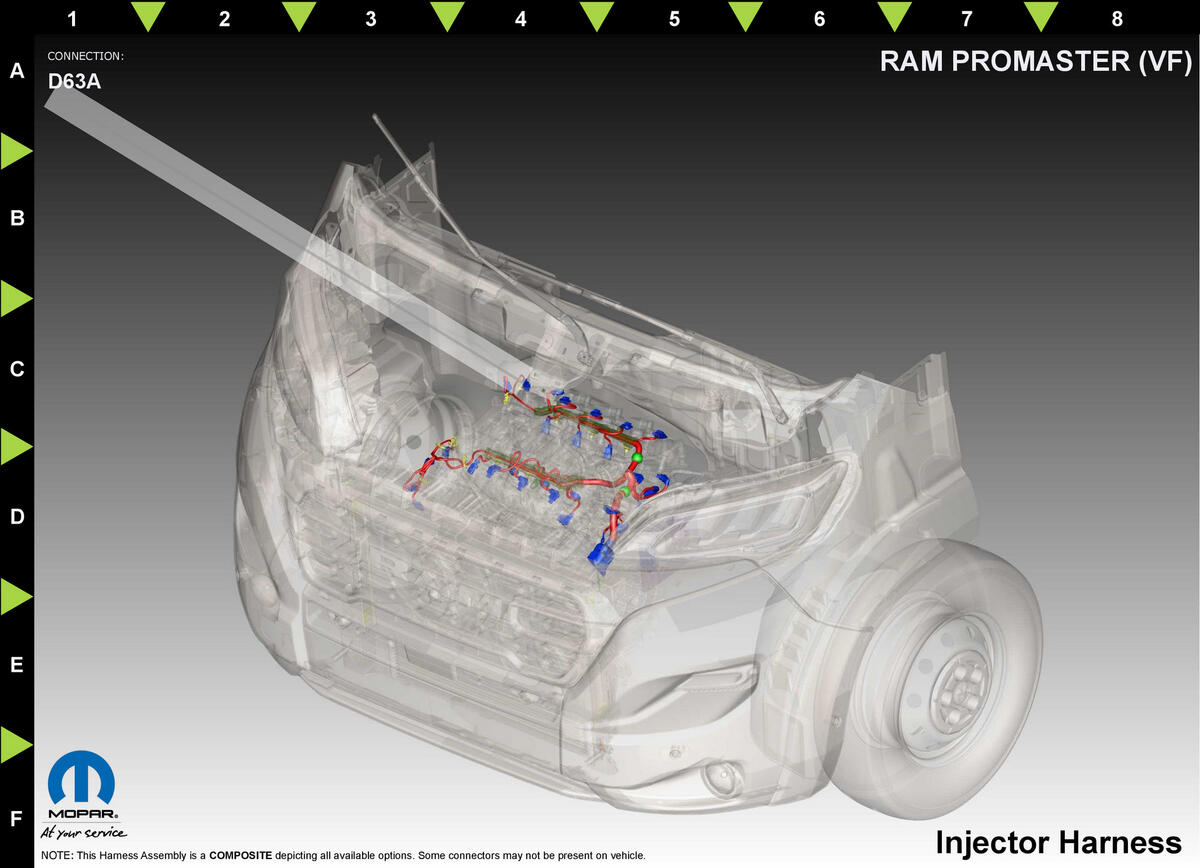

Fig 2: Solenoid-Vvt Exhaust 1/2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K276

DB/WH

0.35

CONTROL

N/A

Z904

0.35

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
