S3666L67 (Standard) Connector End View (S3666L67)

Harness-Family: Dome_Lamps_Jumper

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S3666L67

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S3666l67 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

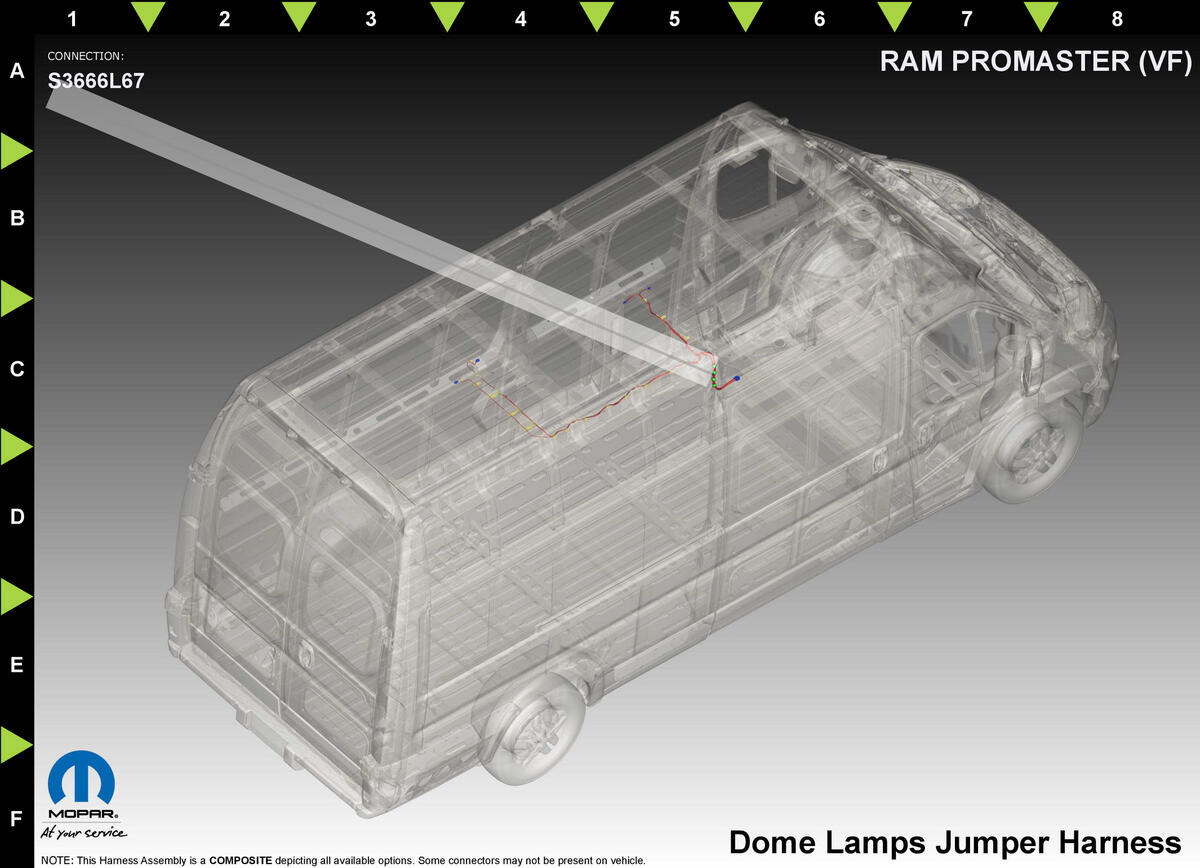

Fig 2: S3666l67 Component Location (Standard)
GCWD1293811Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
2 M11 RD/GN 0.5 COURTESY LAMPS DRIVER SUPER HIGH ROOF AMBIENT LED LIGHTING DELIVERY EQUIPMENT
3 M11 RD/GN 0.5 COURTESY LAMPS DRIVER SUPER HIGH ROOF AMBIENT LED LIGHTING DELIVERY EQUIPMENT
4 M11 RD/GN 0.5 COURTESY LAMPS DRIVER SUPER HIGH ROOF AMBIENT LED LIGHTING DELIVERY EQUIPMENT
5 M11 RD/GN 0.5 COURTESY LAMPS DRIVER SUPER HIGH ROOF AMBIENT LED LIGHTING DELIVERY EQUIPMENT
(1) Pins not listed are not used for this connector
