S3352A39 (Standard) Connector End View (S3352A39)

Harness-Family: Fascia_Front

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S3352A39

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S3352a39 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

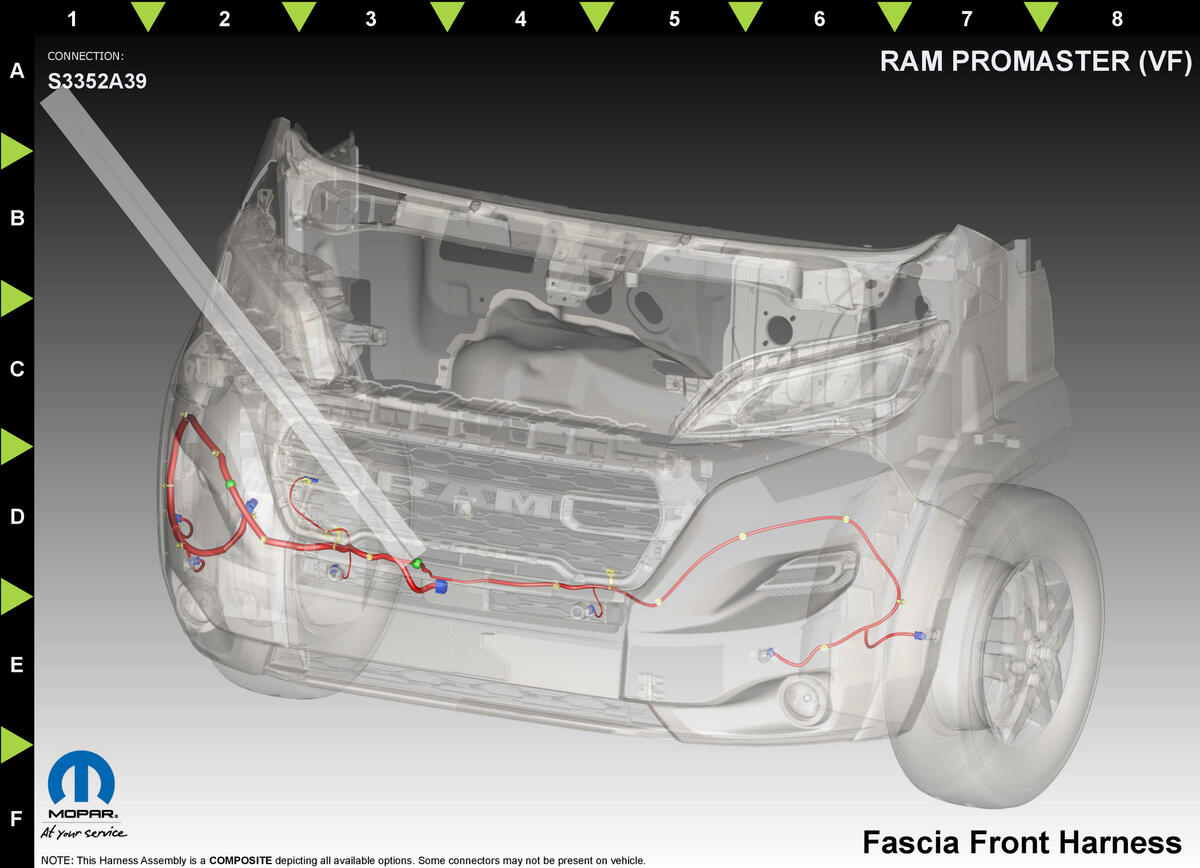

Fig 2: S3352a39 Component Location (Standard)
GCWD1293533Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
2 X751 BK/VT 0.35 FRONT PARK ASSIST SENSOR GROUND FRONT AND REAR PARK ASSIST WITH PARK AND UNPARK
3 X751 BK/VT 0.35 FRONT PARK ASSIST SENSOR GROUND FRONT AND REAR PARK ASSIST WITH PARK AND UNPARK
4 X751 BK/VT 0.35 FRONT PARK ASSIST SENSOR GROUND FRONT AND REAR PARK ASSIST WITH PARK AND UNPARK
5 X751 BK/VT 0.35 FRONT PARK ASSIST SENSOR GROUND FRONT AND REAR PARK ASSIST WITH PARK AND UNPARK
6 X751 BK/VT 0.35 FRONT PARK ASSIST SENSOR GROUND FRONT AND REAR PARK ASSIST WITH PARK AND UNPARK
7 X751 BK/VT 0.35 FRONT PARK ASSIST SENSOR GROUND PARK AND UNPARK ASSIST
8 X751 BK/VT 0.35 FRONT PARK ASSIST SENSOR GROUND PARK AND UNPARK ASSIST
(1) Pins not listed are not used for this connector
