S3339X3 (Standard) Connector End View (S3339X3)

Harness-Family: Fascia_Rear

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S3339X3

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S3339x3 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

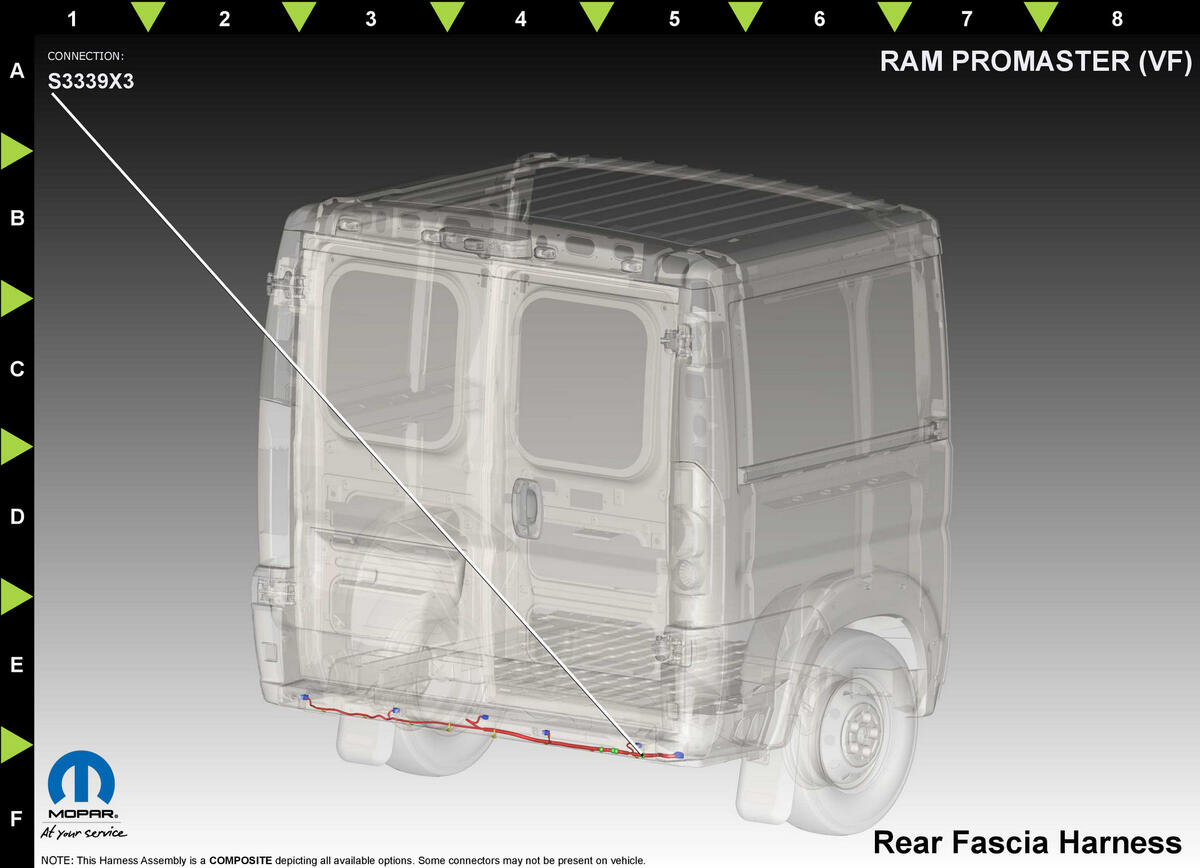

Fig 2: S3339x3 Component Location (Standard)

GCWD1293891

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST EXCEPT TRAILER TOW

3

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST EXCEPT TRAILER TOW

4

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST EXCEPT TRAILER TOW

5

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST EXCEPT TRAILER TOW

6

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST EXCEPT TRAILER TOW

⁽¹⁾	Pins not listed are not used for this connector
