S3147E (Standard) Connector End View (S3147E)

Harness-Family: Engine

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S3147E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S3147e Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

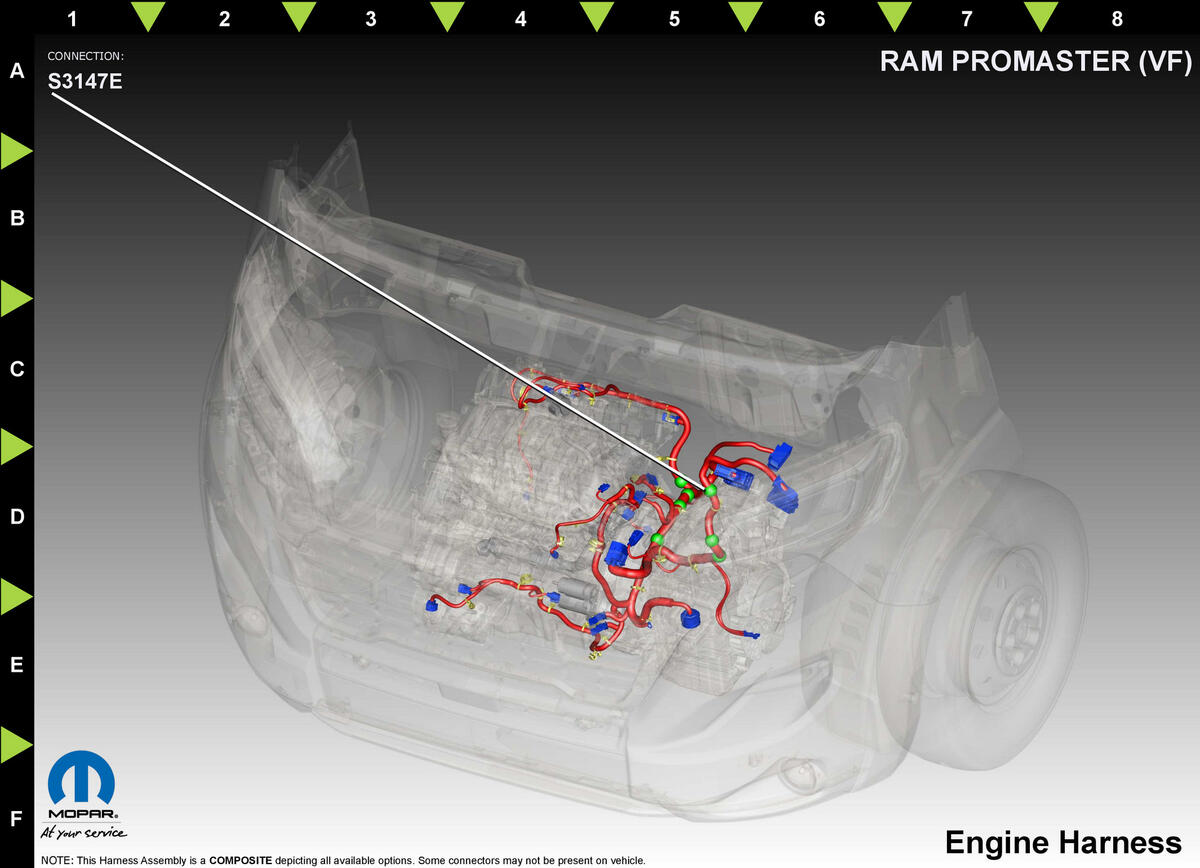

Fig 2: S3147e Component Location (Standard)

GCWD1293534

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

K900

WH/GY

0.75

SENSOR GROUND

N/A

3

K900

WH/GY

0.35

SENSOR GROUND

N/A

4

K900

WH/GY

0.75

SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
