S3127A (Standard) Connector End View (S3127A)

Harness-Family: Body_Front

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S3127A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S3127a Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

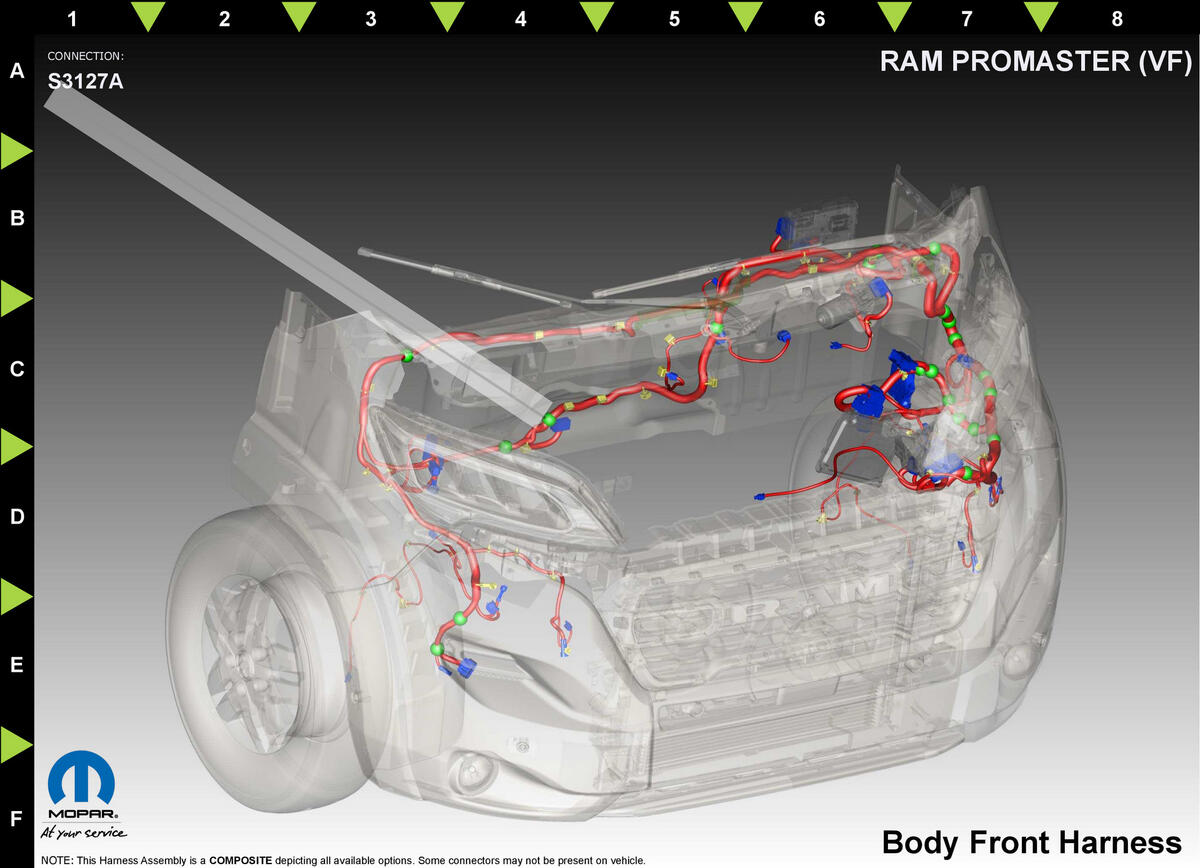

Fig 2: S3127a Component Location (Standard)

GCWD1293331

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

N8

DB/WH

0.75

FUEL TANK PRESSURE SENSOR SUPPLY

N/A

3

N8

RD/BK

0.75

FUEL TANK PRESSURE SENSOR SUPPLY

N/A

4

N8

RD/BK

0.75

FUEL TANK PRESSURE SENSOR SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
