Relay-Vacuum Pump (Standard) Connector End View (D2759A)

Harness-Family: PDC_Front_Aux

Color: BLACK

Gender: MALE

Part Number: 1/11299/85

Part Description: Not Available

Connector No: D2759A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Vacuum Pump Connector End View (Standard)

Courtesy of CHRYSLER

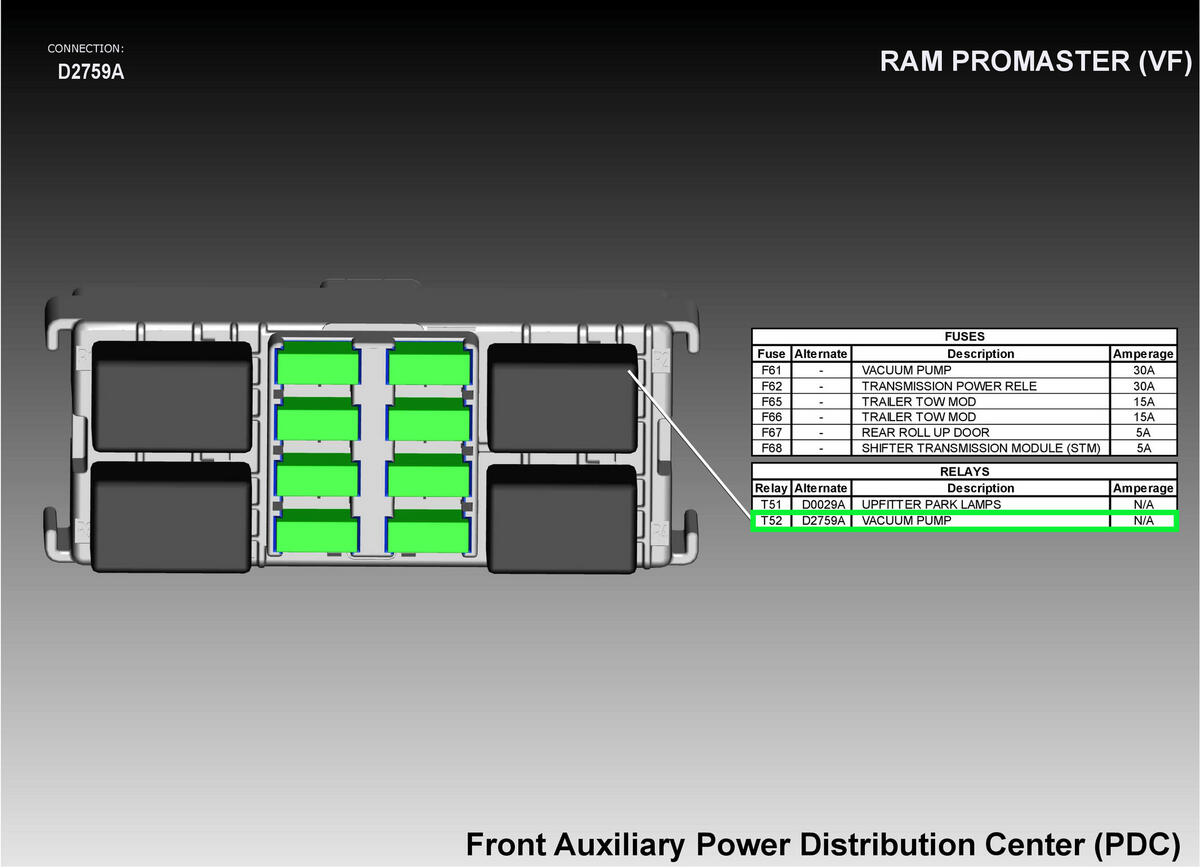

Fig 2: Relay-Vacuum Pump Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A211

INTERNAL

FUSED B(+)

N/A

T110

INTERNAL

VACUUM PUMP RELAY CONTROL

N/A

F306

INTERNAL

FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT

N/A

T109

INTERNAL

VACUUM PUMP RELAY CONTACT CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
